Part Details | NONMETALLIC CHANNEL SEAL
5330-00-071-3462 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Alternate Parts: 10279179, 10279179, 10279179, 10279179, 10279179, 5330-00-071-3462, 00-071-3462, 5330000713462, 000713462
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 18, 1972 | 00-071-3462 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES

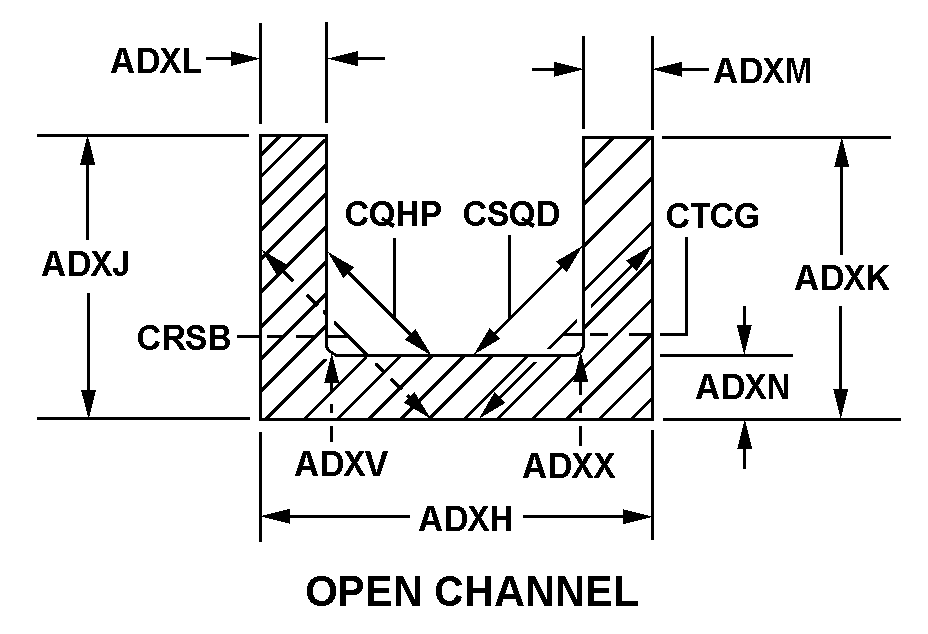

OPEN CHANNEL
Cross Reference | NSN 5330-00-071-3462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10279179 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 10279179 | 4S404 | D AND C MACHINE |
| 10279179 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 10279179 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10279179 | 26772 | WEGO PRECISION MACHINE, INC. |
Technical Data | NSN 5330-00-071-3462
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | ONE-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| WEB WIDTH | 1.500 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.500 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.500 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| WEB THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |
