Part Details | NONMETALLIC STRIP SEAL
5330-00-072-1393 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Alternate Parts: 770984, 1988139, 5330-00-072-1393, 00-072-1393, 5330000721393, 000721393
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-072-1393 | 36874 ( SEAL, NONMETALLIC STRIP ) |

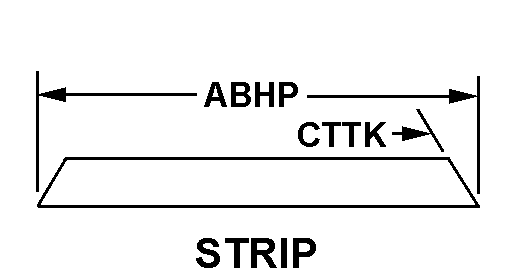

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
STRIP
Cross Reference | NSN 5330-00-072-1393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 770984 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 1988139 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5330-00-072-1393
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.750 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | STRIP |
| OVERALL LENGTH | 18.375 INCHES NOMINAL |
| END CUT ANGLE | 45.0 DEGREES |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 4 |
| ATTACHMENT HOLE DIAMETER | 0.372 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
