Part Details | GASKET
5330-00-076-0613 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 32694PC212 12, 32694PC21-2 1-2, 32694212PC21, 32694-21-2PC21, 32694 2.50 IN P, 5330-00-076-0613, 00-076-0613, 5330000760613, 000760613
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 29, 1967 | 00-076-0613 | 04522 ( GASKET ) |

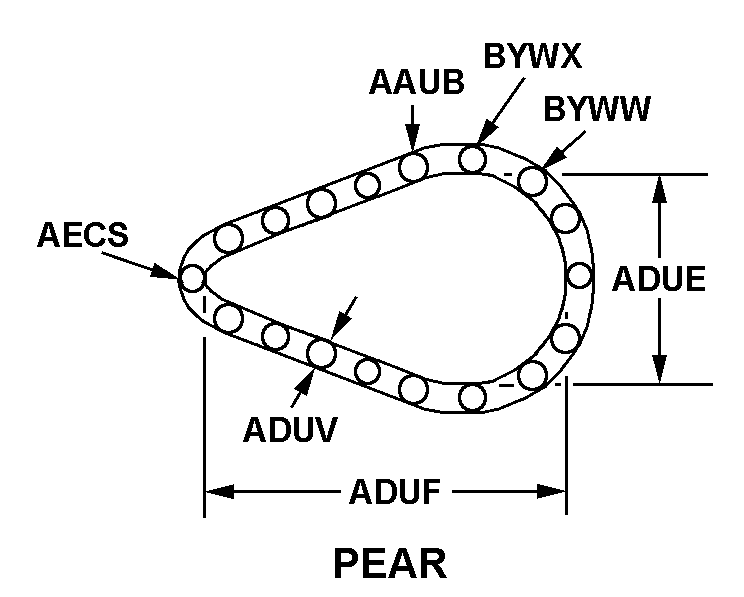

REFERENCE DRAWINGS & PICTURES
METAL
PEAR
Cross Reference | NSN 5330-00-076-0613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32694PC21-2 1-2 | 14959 | CRANE CODIV VALVE DIV |
| 32694-21-2PC21 | 14959 | CRANE CODIV VALVE DIV |
| 32694 2.50 IN P | 14959 | CRANE CODIV VALVE DIV |
Technical Data | NSN 5330-00-076-0613
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | METAL |
| CENTER TO CENTER DISTANCE | 0.125 INCHES NOMINAL |
| GAGE THICKNESS | 0.024 INCHES NOMINAL |
| STYLE DESIGNATOR | PEAR |
| APERTURE WIDTH | 3.063 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.313 INCHES NOMINAL |
