Part Details | PLAIN ENCASED SEAL
5330-00-086-7863 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Alternate Parts: 215003S60, 215003S60, 570104262362324450071, 570104/262-3623-24/450071, 450071, 262362324450071, 262-3623-24-450071, 262362324, 262-3623-24, VA570104, 5330-00-086-7863, 00-086-7863, 5330000867863, 000867863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-086-7863 | 04214 ( SEAL, PLAIN ENCASED ) |
REFERENCE DRAWINGS & PICTURES
SQUARE

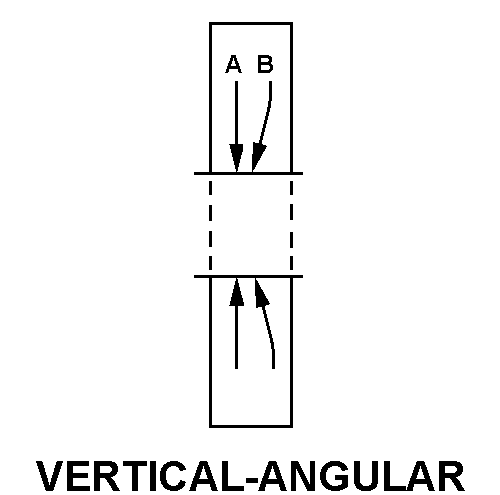

VERTICAL-ANGULAR
Cross Reference | NSN 5330-00-086-7863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215003S60 | 76680 | FEDERAL-MOGUL CORPCHASSIS PRODUCTS DIV |
| 215003S60 | 81596 | FEDERAL-MOGUL CORPSEALING PRODUCTS GROUP |
| 570104/262-3623-24/450071 | 5F893 | VANSEAL CORPORATION |
| 450071 | 5F893 | VANSEAL CORPORATION |
| 262-3623-24-450071 | 5F893 | VANSEAL CORPORATION |
| 262-3623-24 | 5F893 | VANSEAL CORPORATION |
| VA570104 | 5F893 | VANSEAL CORPORATION |
Technical Data | NSN 5330-00-086-7863
| Characteristic | Specifications |
|---|---|
| CASE STYLE | SQUARE |
| SEALING ELEMENT STYLE | VERTICAL-ANGULAR |
| SEAL WIDTH | 0.735 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 2.625 INCHES NOMINAL |
