Part Details | PLAIN SEAL
5330-00-090-3523 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: A10208, 5330-00-090-3523, 00-090-3523, 5330000903523, 000903523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-090-3523 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

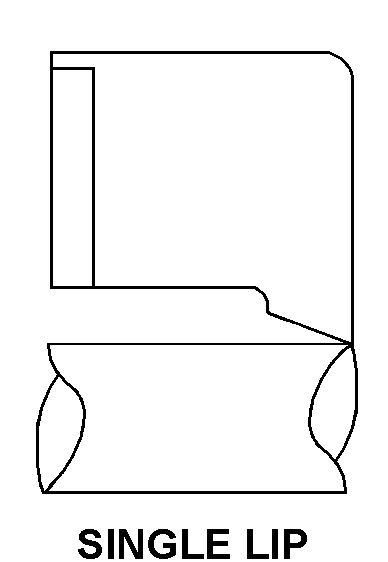

SINGLE LIP
Cross Reference | NSN 5330-00-090-3523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A10208 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5330-00-090-3523
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | SINGLE LIP |
| SEAL WIDTH | 4.000 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 0.205 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 0.330 INCHES NOMINAL |
