Part Details | SCALE DIAL
5355-00-175-3073 A dial designed to be read in conjunction with a vernier indicator, pointer(s) or like instruments, which device is not an integral part of the item. The item does not have facilities for connection to a tuning or selection mechanism to position the mechanism. However, it may be designed to be mounted on a knob used to position the mechanism. Excludes SCALEPLATE, ELECTRICAL METER. See also DIAL, CONTROL.
Alternate Parts: 2678626, 141678, 5355-00-175-3073, 00-175-3073, 5355001753073, 001753073
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 08, 1971 | 00-175-3073 | 03264 ( DIAL, SCALE ) |
REFERENCE DRAWINGS & PICTURES

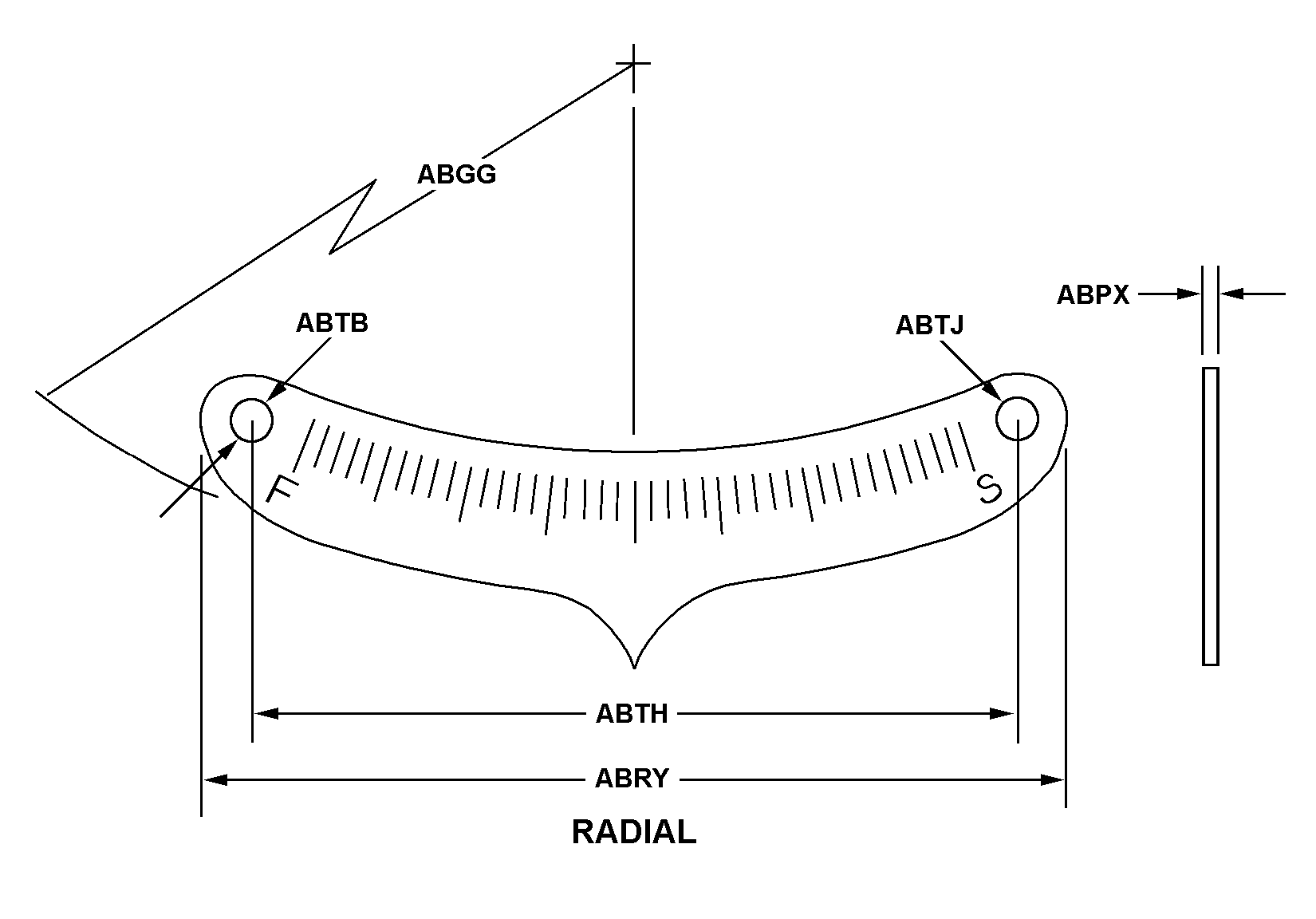

RADIAL
Cross Reference | NSN 5355-00-175-3073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2678626 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 141678 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVAL AND MARINE SYSTEMS |
Technical Data | NSN 5355-00-175-3073
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RADIAL |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| LENGTH | 12.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.164 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.625 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 19 |
