Part Details | DIAL MASK
5355-00-254-9829 An item specifically designed to be used with a multiscale dial or sector of a measuring device to limit, open or close the observation of the scale (s), or dial (s) desired. It is usually flat and contains one or more observation slots. It may be hinged or otherwise moved by rotary or straight-line motion to expose the scale or scales required for observation.
Alternate Parts: 104178, 5355-00-254-9829, 00-254-9829, 5355002549829, 002549829
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 23, 1969 | 00-254-9829 | 09867 ( MASK, DIAL ) |

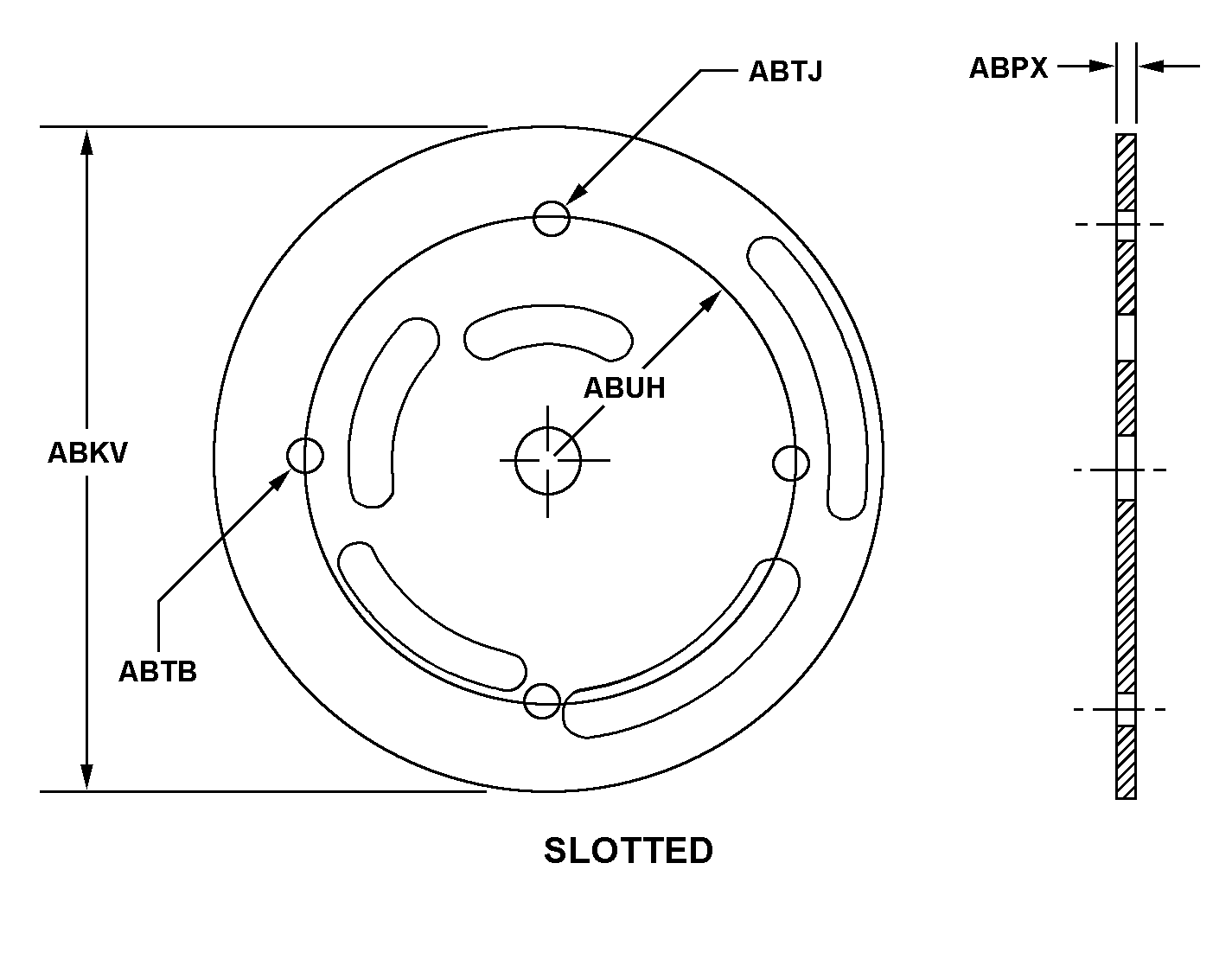

REFERENCE DRAWINGS & PICTURES
SLOTTED
Cross Reference | NSN 5355-00-254-9829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104178 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Technical Data | NSN 5355-00-254-9829
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOTTED |
| OUTSIDE DIAMETER | 2.106 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.086 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| ATTACHMENT METHOD | HOLE |
