Part Details | DIAL POINTER
5355-00-323-1489 An item intended to be mounted on or associated with a rotating shaft or similar device to determine relative position or definite dial and/or scale readings. Positioning may be indicated by the shape of the item or by a reference line thereon. Excludes CURSOR, INDICATOR and KNOB.
Alternate Parts: SMC630700, 5355-00-323-1489, 00-323-1489, 5355003231489, 003231489
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 24, 1973 | 00-323-1489 | 08084 ( POINTER, DIAL ) |
REFERENCE DRAWINGS & PICTURES

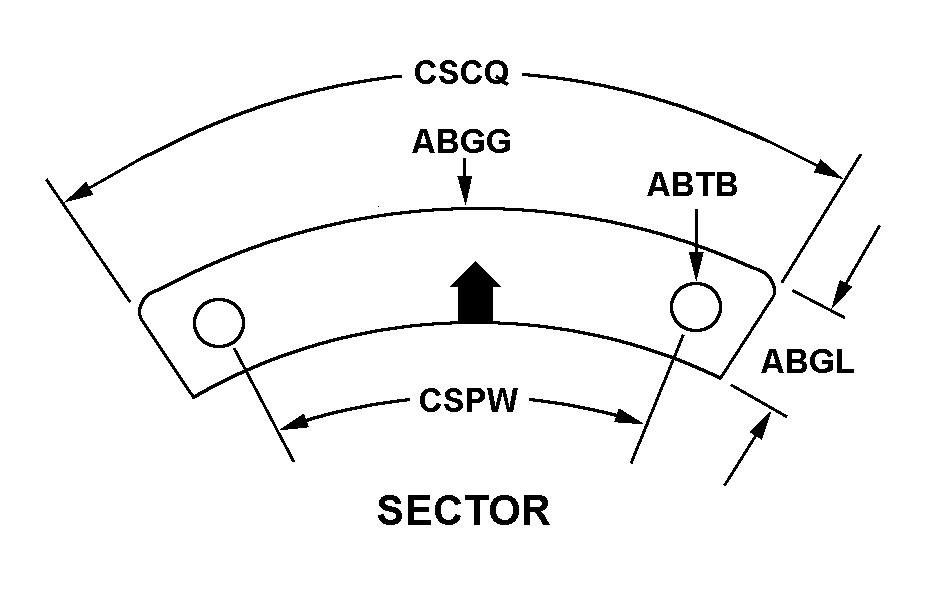

SECTOR
Cross Reference | NSN 5355-00-323-1489
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMC630700 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5355-00-323-1489
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SECTOR |
| RADIUS | 2.500 INCHES NOMINAL |
| WIDTH | 1.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.075 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| MATERIAL TRANSPARENCY | OPAQUE |
| ATTACHMENT METHOD | HOLE |
