Part Details | DIAL STOP
5355-00-351-3490 A device used in conjunction with a dial to prevent movement beyond a fixed point. For items designed to grip a knob or dial, see DIAL-KNOB LOCK, ELECTRONIC COMPONENT.
Alternate Parts: GB307512F, GB3075-12F, GB307512F, GB3075-12F, GB307512E, GB3075-12E, SCC42058, 5355-00-351-3490, 00-351-3490, 5355003513490, 003513490
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-351-3490 | 14967 ( STOP, DIAL ) |
REFERENCE DRAWINGS & PICTURES

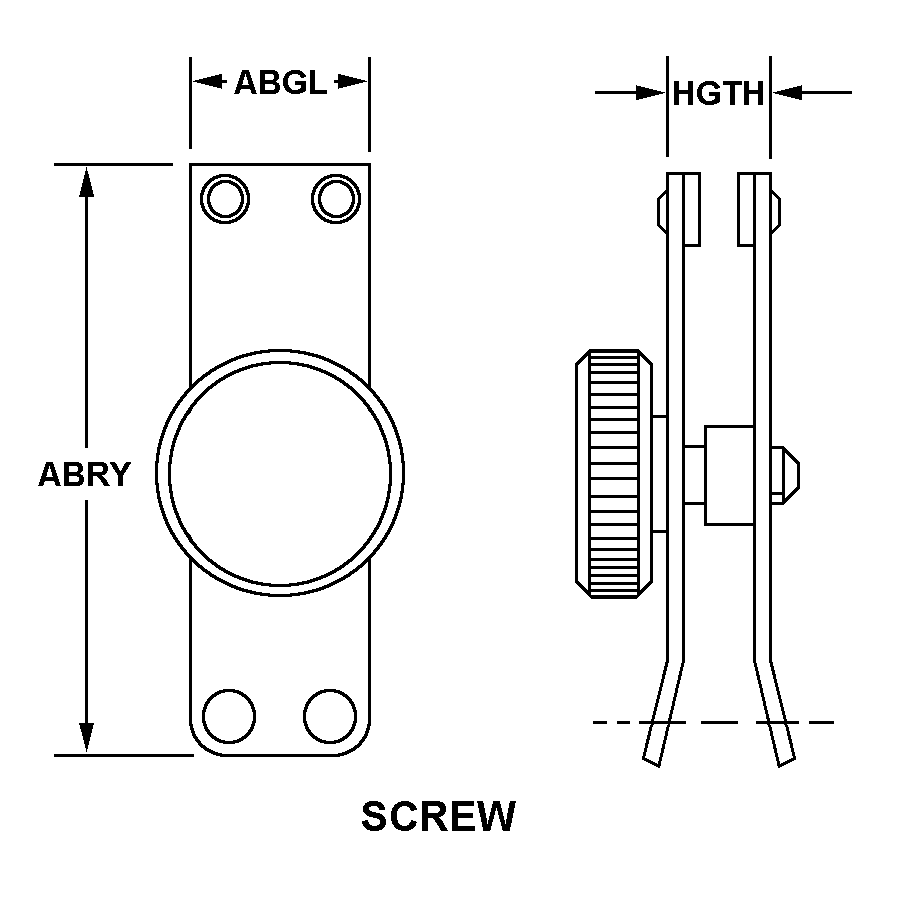

SCREW
Cross Reference | NSN 5355-00-351-3490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GB3075-12F | 31550 | HARRIS CORPORATIONDBA NIGHT VISION & COMMUNICATIONS |
| GB3075-12F | 28528 | ITT INDUSTRIES INCITT AEROSPACE COMMUNICATIONS |
| GB3075-12E | 28528 | ITT INDUSTRIES INCITT AEROSPACE COMMUNICATIONS |
| SCC42058 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5355-00-351-3490
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SCREW |
| WIDTH | 1.562 INCHES NOMINAL |
| LENGTH | 2.406 INCHES NOMINAL |
| HEIGHT | 0.125 INCHES NOMINAL |
| ATTACHMENT METHOD | HOLE |
| MATERIAL | STEEL |
