Part Details | LOCK DIAL-KNOB
5355-00-351-3591 An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial or knob to a fixed position. For items designed to clamp around the shaft to which the dial or knob is affixed, see SHAFT LOCK, ELECTRICAL COMPONENT.
Alternate Parts: A233532, SCB36331, SC-B-36331, 5355-00-351-3591, 00-351-3591, 5355003513591, 003513591
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-351-3591 | 67471 ( DIAL-KNOB, LOCK ) |
REFERENCE DRAWINGS & PICTURES

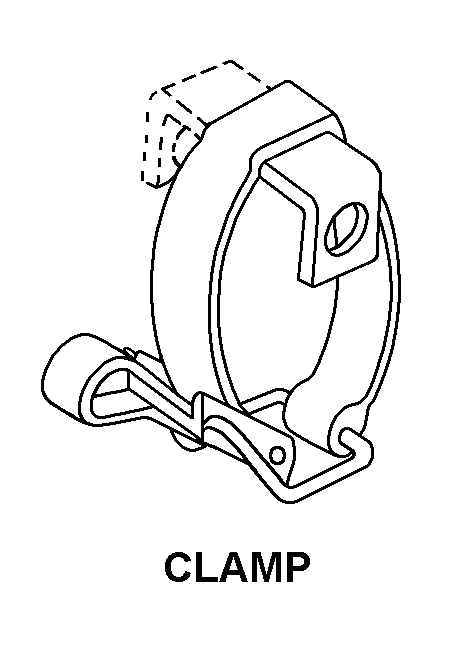

CLAMP
Cross Reference | NSN 5355-00-351-3591
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A233532 | 80045 | L-3 COMMUNICATIONS CINCINNATIELECTRONICS CORPORATION |
| SC-B-36331 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5355-00-351-3591
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP |
| ATTACHMENT METHOD | BRACKET MOUNTED |
| MATERIAL | COPPER ALLOY AND STEEL CORROSION RESISTING |
| SURFACE TREATMENT | NICKEL |
| LOCKING ADJUSTMENT TYPE | SPRING CLIP |
| SPECIAL FEATURES | COLOR BLACK ALLOVER; MIL SPEC MIL-F-14072 ALLOVER |
