Part Details | TORSION SPIRAL SPRING
5360-00-064-7717 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 442016, 44-2016, 442016, 44-2016, 442016, 44-2016, 5360-00-064-7717, 00-064-7717, 5360000647717, 000647717
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 24, 1967 | 00-064-7717 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

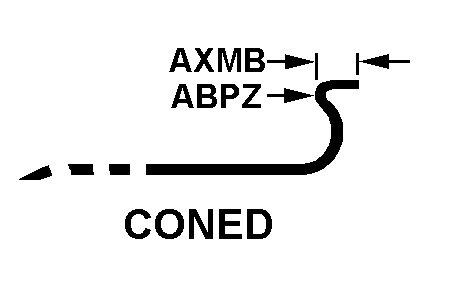

CONED
Cross Reference | NSN 5360-00-064-7717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44-2016 | 77535 | BARNES GROUP INC.DBA ASSOCIATED SPRING |
| 44-2016 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 44-2016 | 2B178 | WIRE PRODUCTS COMPANY, INC.DBA UNIVERSAL FABRICATION & ASSEMBLY |
Technical Data | NSN 5360-00-064-7717
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONED |
| END RADIUS | 0.015 INCHES NOMINAL |
| SPRING OVERALL DIAMETER | 0.450 INCHES MAXIMUM |
| HUB SIZE | 0.170 INCHES MINIMUM |
| HUB END SIZE | 0.140 INCHES MINIMUM |
| END LENGTH | 0.020 INCHES NOMINAL |
| STOCK WIDTH | 0.093 INCHES NOMINAL |
| STOCK THICKNESS | 0.015 INCHES NOMINAL |
| COIL QUANTITY | 3 |
