Part Details | TORSION SPIRAL SPRING
5360-00-145-3852 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 3008169049101, 3008169-049-101, 554010259, 5360-00-145-3852, 00-145-3852, 5360001453852, 001453852
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 29, 1971 | 00-145-3852 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

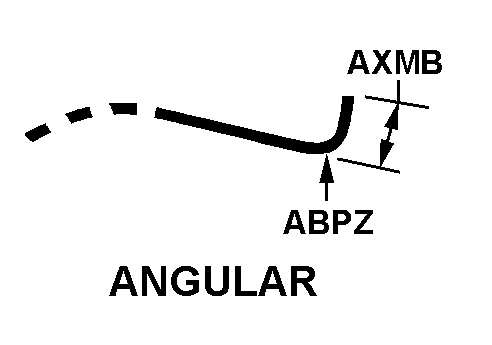

ANGULAR
Cross Reference | NSN 5360-00-145-3852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3008169-049-101 | 99696 | LOCKHEED MARTIN CORPORATIONDIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| 554010259 | 17411 | SANDVIK, INC.DIV SANDVIK COROMANT COMPANY |
Technical Data | NSN 5360-00-145-3852
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGULAR |
| END RADIUS | 0.031 INCHES NOMINAL |
| SPRING OVERALL DIAMETER | 2.920 INCHES MINIMUM AND 2.960 INCHES MAXIMUM |
| HUB SIZE | 0.125 INCHES NOMINAL |
| HUB END SIZE | 0.250 INCHES NOMINAL |
| END LENGTH | 0.125 INCHES NOMINAL |
