Part Details | COMPRESSION HELICAL SPRING
5360-00-163-4227 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: 31604441, 3160444-1, 31604441, 3160444-1, 5360-00-163-4227, 00-163-4227, 5360001634227, 001634227
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 23, 1972 | 00-163-4227 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
REFERENCE DRAWINGS & PICTURES

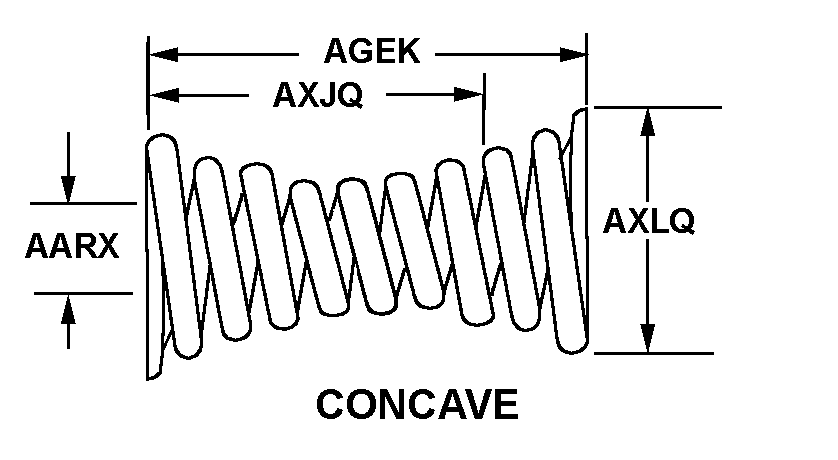

CONCAVE
Cross Reference | NSN 5360-00-163-4227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3160444-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 3160444-1 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5360-00-163-4227
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONCAVE |
| INSIDE DIAMETER | 0.400 INCHES MINIMUM |
| SPRING FREE LENGTH | 1.940 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.070 INCHES MAXIMUM |
| SPRING FREE OUTSIDE DIAMETER | 0.820 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| COIL HELIX DIRECTION | L$G |
| COIL QUANTITY | 8 |
| SPRING DEFLECTION RATE | 1.700 POUNDS PER INCH NOMINAL |
