Part Details | TORSION SPIRAL SPRING
5360-00-193-1388 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 3564S, 237000052, 23700005-2, 5360-00-193-1388, 00-193-1388, 5360001931388, 001931388
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 06, 1970 | 00-193-1388 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

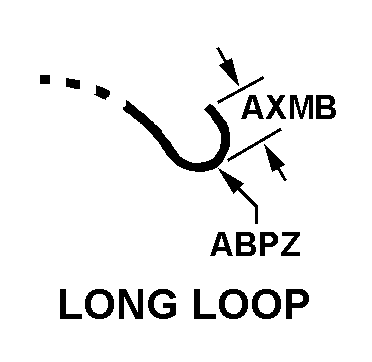

LONG LOOP
Cross Reference | NSN 5360-00-193-1388
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3564S | 72441 | FLOWER D B MFG CO |
| 23700005-2 | 20019 | WARD LEONARD CT LLCDIV WARD LEONARD - TECH SYSTEMS |
Technical Data | NSN 5360-00-193-1388
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LONG LOOP |
| END RADIUS | 0.094 INCHES NOMINAL |
| HUB SIZE | 0.188 INCHES NOMINAL |
| HUB END SIZE | 0.188 INCHES NOMINAL |
| END LENGTH | 0.219 INCHES NOMINAL |
| STOCK WIDTH | 0.188 INCHES NOMINAL |
| STOCK THICKNESS | 0.020 INCHES NOMINAL |
| COIL QUANTITY | 5 |
