Part Details | MACHINE THREAD PLUG
5365-00-043-1503 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: G49080, R34446, 13761, 5365-00-043-1503, 00-043-1503, 5365000431503, 000431503
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 15, 1968 | 00-043-1503 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

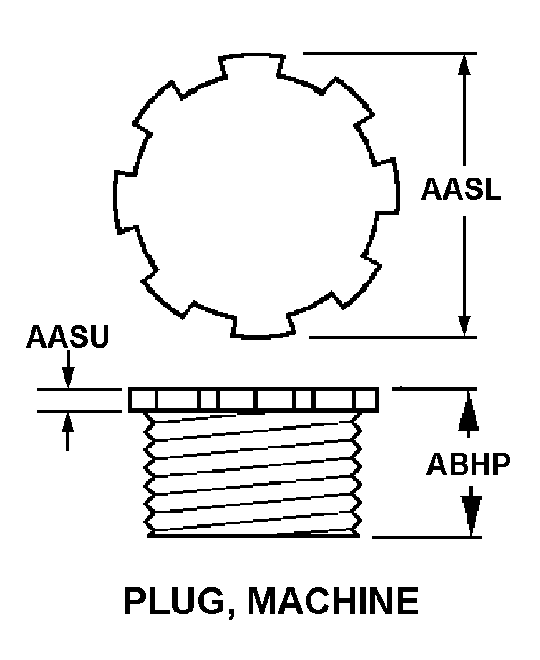

PLUG, MACHINE
Cross Reference | NSN 5365-00-043-1503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G49080 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| R34446 | 06021 | DEERE AND CO |
| 13761 | 84760 | STANADYNE CORPORATIONDBA STANADYNE DIESEL SYSTEMS |
Technical Data | NSN 5365-00-043-1503
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLUG, MACHINE |
| HEAD DIAMETER | 0.555 INCHES NOMINAL |
| HEAD HEIGHT | 0.371 INCHES NOMINAL |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| CONNECTION STYLE | PLAIN |
| HEAD TYPE | SOLID |
| BODY TYPE | SOLID |
