Part Details | SLEEVE SPACER
5365-00-075-1327 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Alternate Parts: 2380, 2380, 1008501, 100850-1, 2380, 5365-00-075-1327, 00-075-1327, 5365000751327, 000751327
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-075-1327 | 13207 ( SPACER, SLEEVE ) |

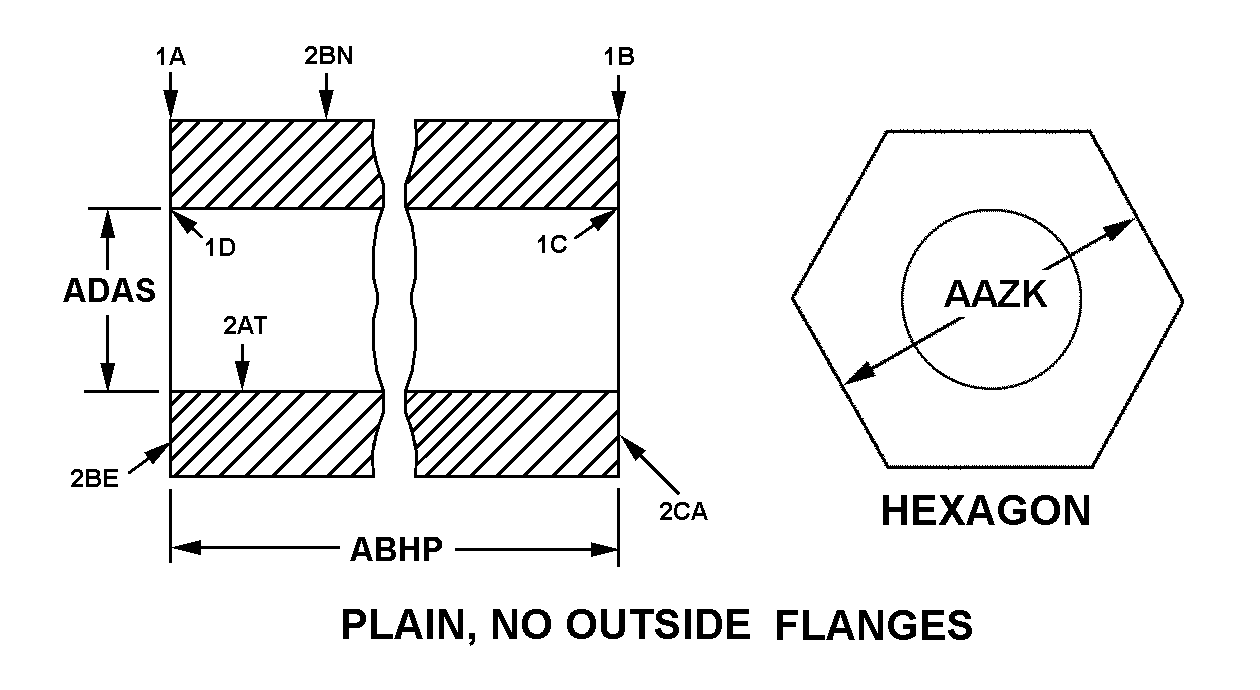

REFERENCE DRAWINGS & PICTURES
HEXAGON, PLAIN, NO OUTSIDE FLANGES
Cross Reference | NSN 5365-00-075-1327
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2380 | 64812 | ARJAY ELECTRONICS CORP |
| 2380 | 83330 | DIALIGHT CORPORATION |
| 100850-1 | 15057 | GULTON INDUSTRIES INCMEASUREMENT AND CONTROL SYSTEMS DIV |
| 2380 | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
Technical Data | NSN 5365-00-075-1327
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEXAGON, PLAIN, NO OUTSIDE FLANGES |
| WIDTH ACROSS FLATS | 0.2500 INCHES NOMINAL |
| OVERALL LENGTH | 0.2500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.1100 INCHES NOMINAL |
