Part Details | MACHINE THREAD PLUG
5365-00-080-8949 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 216027501, 2-160-275-01, 5365-00-080-8949, 00-080-8949, 5365000808949, 000808949
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-080-8949 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES

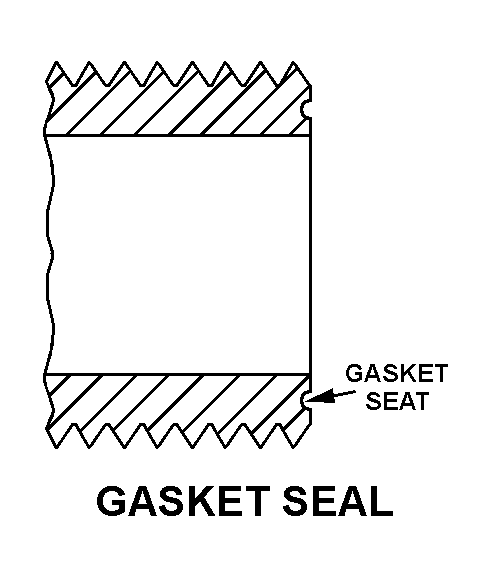

GASKET SEAL
PLUG, MACHINE
Cross Reference | NSN 5365-00-080-8949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-160-275-01 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5365-00-080-8949
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 PLUG, MACHINE |
| HEAD HEIGHT | 0.270 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| OVERALL LENGTH | 0.720 INCHES MINIMUM AND 0.740 INCHES MAXIMUM |
| CONNECTION STYLE | GASKET SEAL |
| BODY CORE DIAMETER | 0.595 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |
| CORE DEPTH | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
