Part Details | MACHINE THREAD PLUG
5365-00-090-9105 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 7982988, 7982988, 5365-00-090-9105, 00-090-9105, 5365000909105, 000909105
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-090-9105 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES
FLARED

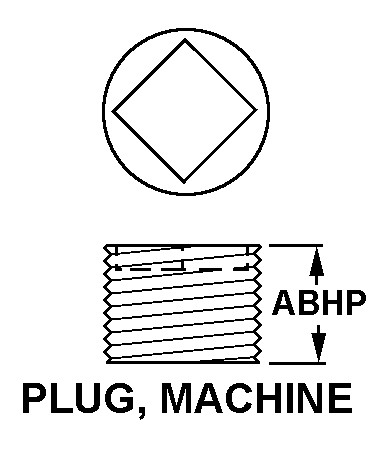

PLUG, MACHINE
Cross Reference | NSN 5365-00-090-9105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7982988 | 97484 | EATON AEROSPACE LLCDIV FLUID AND ELECTRICAL |
| 7982988 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5365-00-090-9105
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLUG, MACHINE |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| CONNECTION STYLE | FLARED |
| SEAT ANGLE | 45.0 DEGREES |
