Part Details | NONMETALLIC BUSHING
5365-00-098-5023 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Alternate Parts: 6720943, 10408145, 10-40814-5, 6720943, 1290356, 22144, 22144, 22144, 5365-00-098-5023, 00-098-5023, 5365000985023, 000985023
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-098-5023 | 39929 ( BUSHING, NONMETALLIC ) |
REFERENCE DRAWINGS & PICTURES

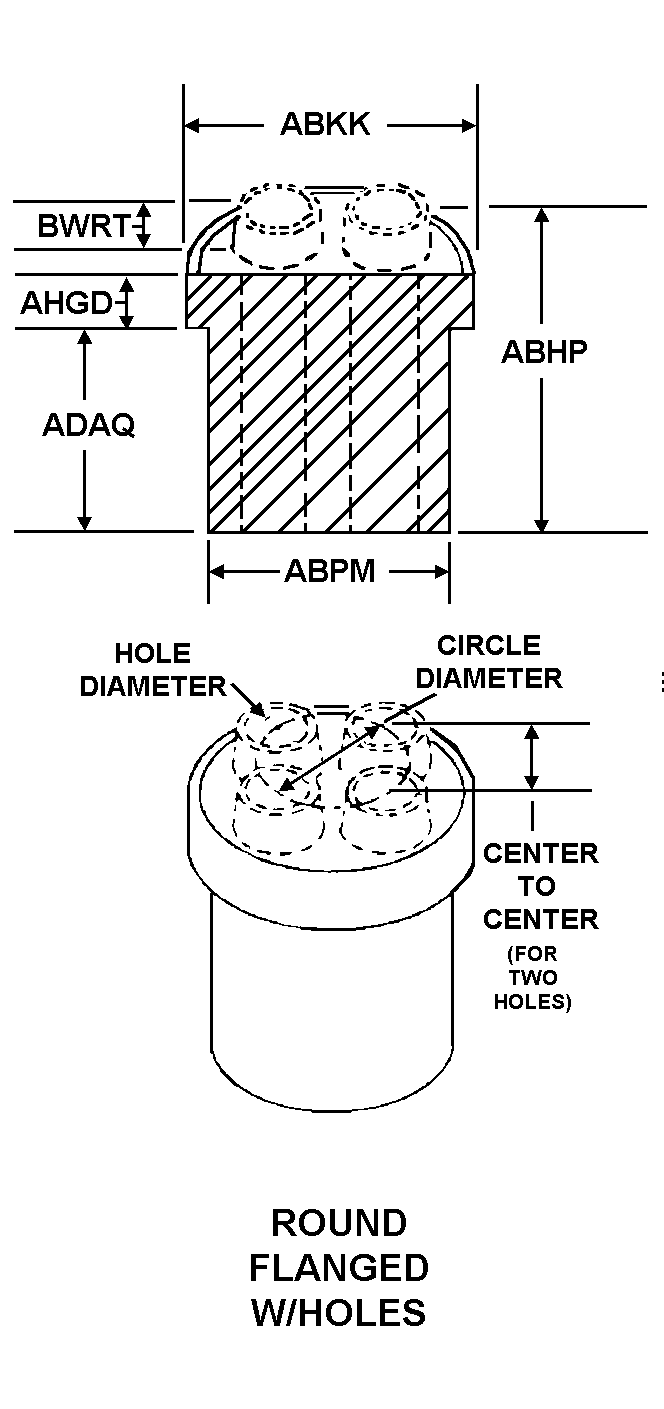

ROUND FLANGED W/HOLES
Cross Reference | NSN 5365-00-098-5023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6720943 | 73342 | ALLISON TRANSMISSION, INC. |
| 10-40814-5 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 6720943 | 24617 | GENERAL MOTORS CORP |
| 1290356 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 22144 | 068H2 | UNISON INDUSTRIES INC. |
| 22144 | 83311 | UNISON INDUSTRIES, LLC |
| 22144 | 59501 | UNISON INDUSTRIES, LLC |
Technical Data | NSN 5365-00-098-5023
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| DESIGN TYPE | MULTIPLE HOLES |
| STYLE DESIGNATOR | ROUND FLANGED W/HOLES |
| OVERALL LENGTH | 0.396 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.583 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
| BODY DIAMETER | 0.490 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| BODY LENGTH | 0.312 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| FLANGE HEIGHT | 0.084 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| BODY HEIGHT ABOVE FLANGE | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| HOLE SPACING | EQUALLY SPACED ON 0.281 IN. CIRCLE |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM DUROMETER AND 75.0 MAXIMUM DUROMETER |
