NSN 5365-00-111-2508

Part Details | MAGNETIC MACHINE THREAD PLUG

5365-00-111-2508 A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems.

Alternate Parts: 30101596, 3010159-6, 3010159, 5365-00-111-2508, 00-111-2508, 5365001112508, 001112508

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53AUG 16, 196800-111-250822339 ( PLUG, MACHINE THREAD, MAGNETIC )
REFERENCE DRAWINGS & PICTURES

PLAIN

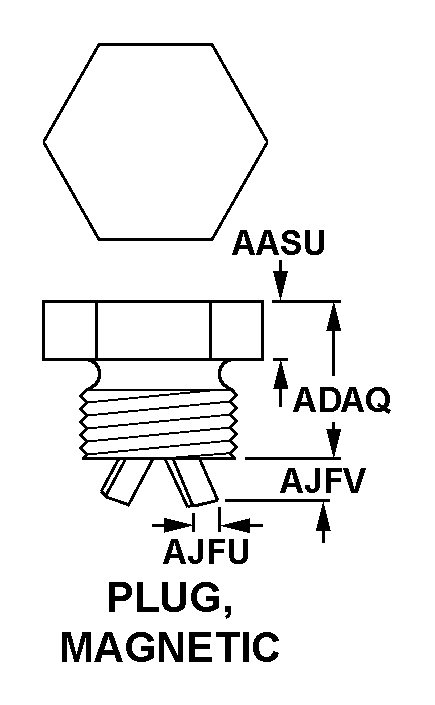

PLUG, MAGNETIC

Cross Reference | NSN 5365-00-111-2508
Part Number Cage Code Manufacturer
3010159-689926NEW HOLLAND CONSTRUCTION
301015989926NEW HOLLAND CONSTRUCTION
Technical Data | NSN 5365-00-111-2508
Characteristic Specifications
STYLE DESIGNATOR PLUG, MAGNETIC
HEAD HEIGHT0.219 INCHES NOMINAL
BODY LENGTH0.656 INCHES NOMINAL
MAGNET WIDTH0.375 INCHES NOMINAL
MAGNET PROJECTION LENGTH0.250 INCHES NOMINAL
CONNECTION STYLE PLAIN
