Part Details | SLEEVE SPACER
5365-00-114-2256 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Alternate Parts: 52B10621, 52-B-1062-1, 52B10621, 52B1062-1, 52B10621, 52B1062-1, 5365-00-114-2256, 00-114-2256, 5365001142256, 001142256
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 11, 1968 | 00-114-2256 | 13207 ( SPACER, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

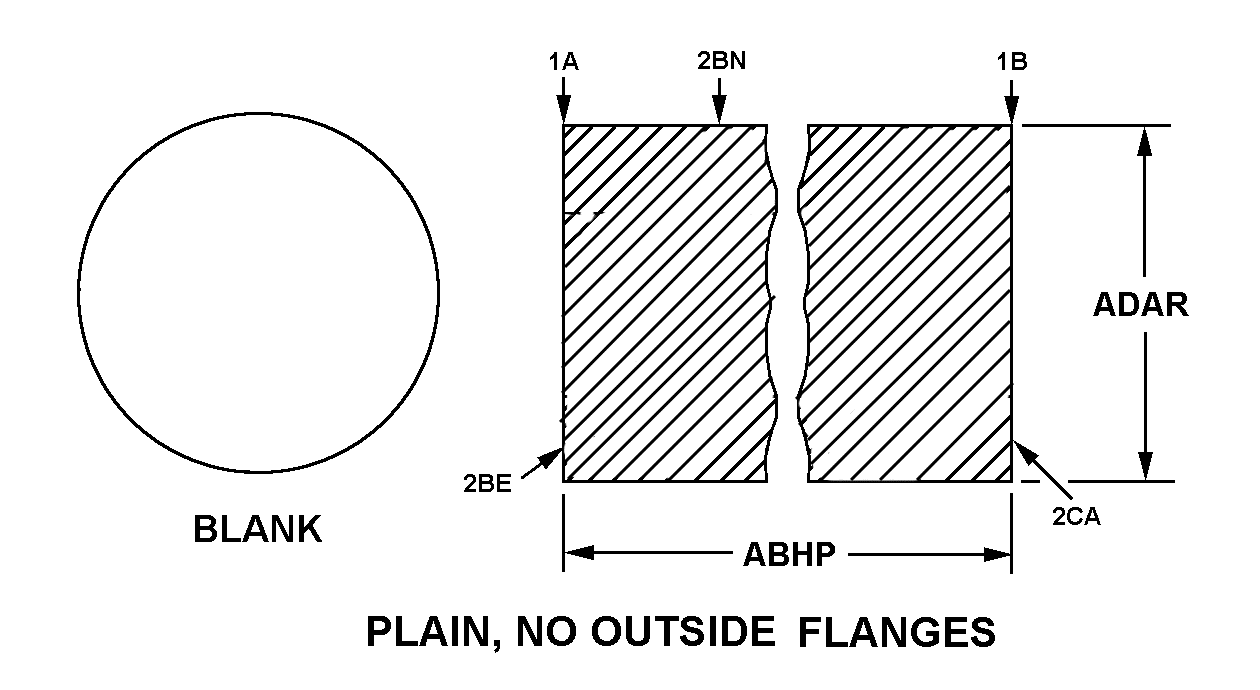

BLANK, PLAIN, NO OUTSIDE FLANGES
Cross Reference | NSN 5365-00-114-2256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52-B-1062-1 | 03111 | BLISS E W COGULF AND WESTERN MFG CO |
| 52B1062-1 | 21439 | ENGINEERED ARRESTING SYSTEMSCORPORATION |
| 52B1062-1 | 0ERM7 | SALDANA MACHINE SERVICE |
Technical Data | NSN 5365-00-114-2256
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN, NO OUTSIDE FLANGES |
| OVERALL LENGTH | 5.4220 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 5.7500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 5.2530 INCHES NOMINAL |
| END ITEM IDENTIFICATION | BAK-12 ACFT ARSR SYS |
| FUNCTIONAL DESCRIPTION | USED AS SPACER ON REEL SHAFT OF REEL ASSY |
| REFERENCE DATA AND LITERATURE | T.O.35E8-2-5-4 |
| SUPPLEMENTARY FEATURES | INDENTATION ON ONE END 0.5625 IN.DEEP; 0.4062 IN. WIDE |
