Part Details | PLATE SPACER
5365-00-119-6160 A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Alternate Parts: 53599, 5365-00-119-6160, 00-119-6160, 5365001196160, 001196160
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-119-6160 | 26979 ( SPACER, PLATE ) |

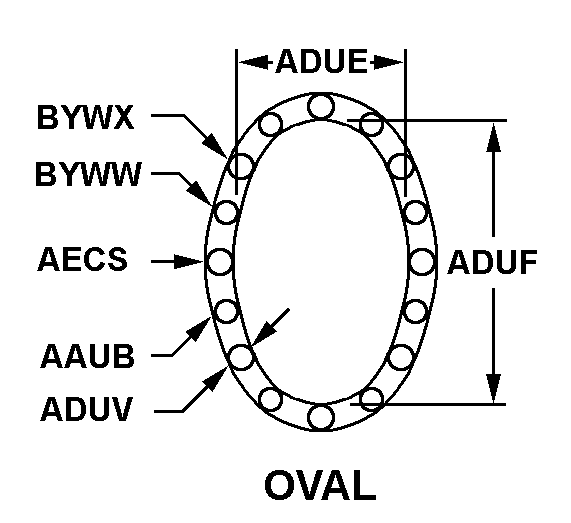

REFERENCE DRAWINGS & PICTURES
OVAL W/O BOLT HOLES
Cross Reference | NSN 5365-00-119-6160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53599 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Technical Data | NSN 5365-00-119-6160
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | HS 132,GRADE 4,FSCM 73030 MFR REF SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | HS 74,FSCM 73030 MFR REF SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM |
| APERTURE WIDTH | 1.499 INCHES MINIMUM AND 1.519 INCHES MAXIMUM |
| APERTURE LENGTH | 3.890 INCHES MINIMUM AND 3.910 INCHES MAXIMUM |
| STYLE DESIGNATOR | OVAL W/O BOLT HOLES |
| BEARING SURFACE WIDTH | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| SPECIAL FEATURES | SHARP EDGES ON BOTH LONGITUDINAL LENGTHS AND CONCENTRIC CONCAVE CURVATURES ON 9.0781 IN. RADIUS THAT ARE 1.1878 IN. LONG EITHER SIDE OF VERTICAL CENTERLINE AND SINGLE END OPENING .250 IN. EITHER SIDE OF 9.078 IN. HORIZONTAL RADIUS CENTERLINE AND SIDE HEIGHT ADJACENT TO OPENING .312 IN. EXTENDING 1.187 IN. EITHER SIDE OF VERTICAL CENTERLINE |
