Part Details | PAPER-PLASTIC DIELECTRIC METALLIZED FIXED CAPACITOR
5910-00-009-3102 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Alternate Parts: 2635193PC2, 260P18396T9, 5910-00-009-3102, 00-009-3102, 5910000093102, 000093102
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 29, 1972 | 00-009-3102 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

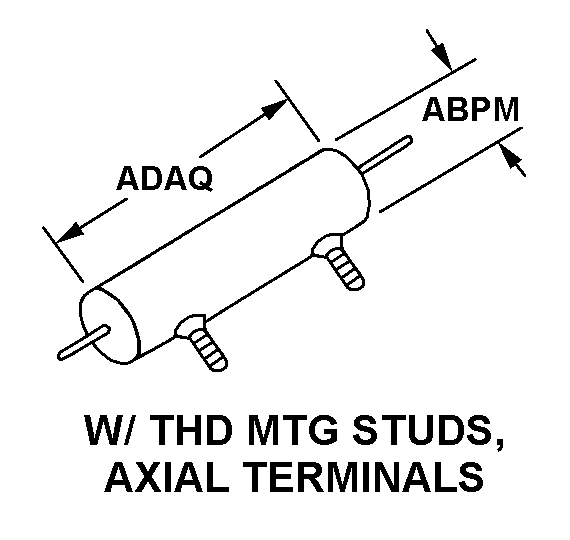

W/THD MTG STUDS, AXIAL TERMINALS
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-009-3102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2635193PC2 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 260P18396T9 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
Technical Data | NSN 5910-00-009-3102
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 18000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 600.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG STUDS, AXIAL TERMINALS |
| BODY DIAMETER | 0.400 INCHES NOMINAL |
| BODY LENGTH | 1.125 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.297 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.625 INCHES NOMINAL |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.3000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TERMINAL SURFACE TREATMENT | SOLDER |
