Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-009-3193 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 01600116, 0160-0116, 01600116, 0160-0116, 181P10591T15, 5910-00-009-3193, 00-009-3193, 5910000093193, 000093193
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 26, 1972 | 00-009-3193 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

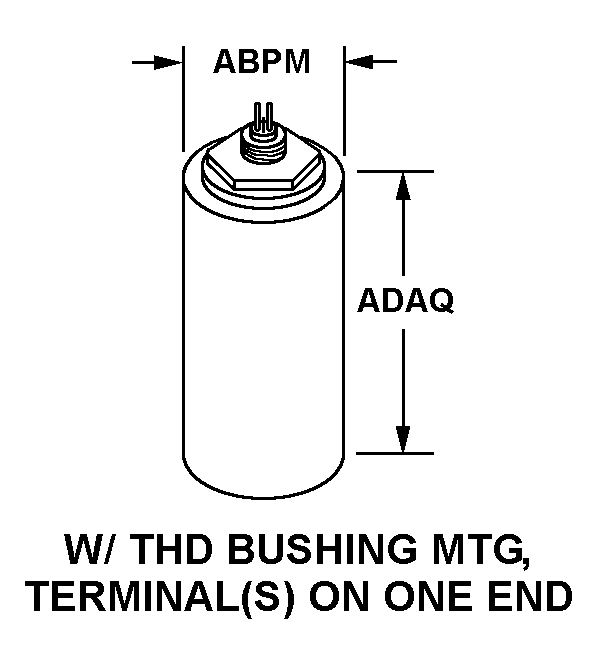

W/THD BUSHING MTG, TERMINAL(S) ON ONE END
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-009-3193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0160-0116 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 0160-0116 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 181P10591T15 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
Technical Data | NSN 5910-00-009-3193
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD BUSHING MTG, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.670 INCHES NOMINAL |
| BODY LENGTH | 1.562 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.296 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| INSULATION RESISTANCE AT REFERENCE TEMP | 20000.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INTERNAL ELECTRICAL CONNECTION TYPE | EXTENDED FOIL |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 200.0 MEGOHM-MICROFARADS |
