Part Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-009-3308 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Alternate Parts: C60003, 1890528105, 189-0528-105, 1890528105, 189-0528-105, 5910-00-009-3308, 00-009-3308, 5910000093308, 000093308
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 02, 1972 | 00-009-3308 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

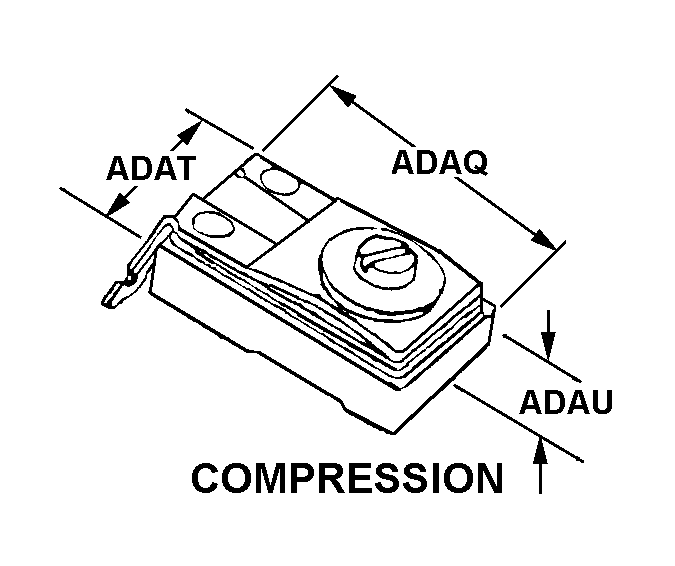

COMPRESSION
Cross Reference | NSN 5910-00-009-3308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C60003 | 34764 | SCIENTIFIC RADIO SYSTEMS INC |
| 189-0528-105 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 189-0528-105 | 71313 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5910-00-009-3308
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5 COMPRESSION |
| OVERALL LENGTH | 1.687 INCHES NOMINAL |
| OVERALL HEIGHT | 0.431 INCHES NOMINAL |
| OVERALL WIDTH | 0.431 INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SHAFT |
| ADJUSTMENT DEVICE TORQUE | 2.500 INCH-OUNCES MINIMUM AND 10.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 PRINTED CIRCUIT |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 TERMINAL |
| QUALITY FACTOR AT 25 DEG CELSIUS | 1500.0 |
