NSN 5910-00-009-4603

Part Details | ELECTROLYTIC FIXED CAPACITOR

5910-00-009-4603 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.

Alternate Parts: 61C40TA222, 61C40TA222, 6C40TA222, 6-C40TA222, 3244TA222U040, 3244TA222U040, 5910-00-009-4603, 00-009-4603, 5910000094603, 000094603

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 02, 197200-009-460300008 ( CAPACITOR, FIXED, ELECTROLYTIC )
REFERENCE DRAWINGS & PICTURES

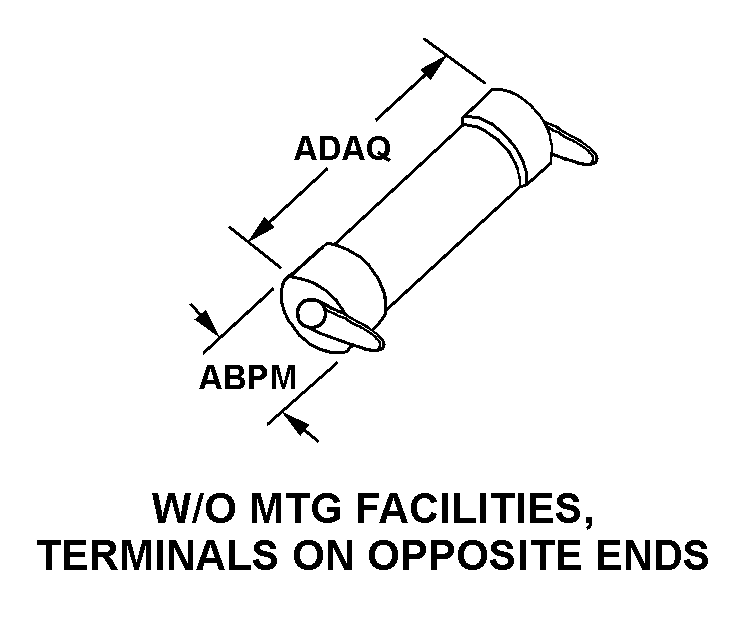

W/O MTG FACILITIES, TERMINALS ON OPPOSITE ENDS

ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL

Cross Reference | NSN 5910-00-009-4603
Part Number Cage Code Manufacturer
61C40TA22299239ALLIED ELECTRONICS EQUIPMENT CO
61C40TA22280031MEPCO/ELECTRA INC
6-C40TA22299392MEPCO/ELECTRA INC ROXBORO DIV
3244TA222U04099392MEPCO/ELECTRA INC ROXBORO DIV
3244TA222U04019701NORTH AMERICAN PHILIPS CORPPHILIPS COMPONENTS
Technical Data | NSN 5910-00-009-4603
Characteristic Specifications
CAPACITANCE VALUE PER SECTION2200.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION-10.00 TO +100.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION40.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP-40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
BODY STYLE W/O MTG FACILITIES, TERMINALS ON OPPOSITE ENDS
BODY DIAMETER1.000 INCHES NOMINAL
BODY LENGTH2.125 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL
TERMINAL TYPE AND QUANTITY2 RIBBON
TERMINAL LENGTH0.750 INCHES NOMINAL
CASE MATERIAL METAL
CASE INSULATION MATERIAL PLASTIC
CAPACITIVE ELECTRODE MATERIAL ALUMINUM
EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS0.26
ELECTRICAL POLARIZATION POLARIZED
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL SURFACE TREATMENT SOLDER
ANODE TYPE PLAIN FOIL
