Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-009-6692 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 650C1080, 650C108, 5910-00-009-6692, 00-009-6692, 5910000096692, 000096692
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 04, 1972 | 00-009-6692 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

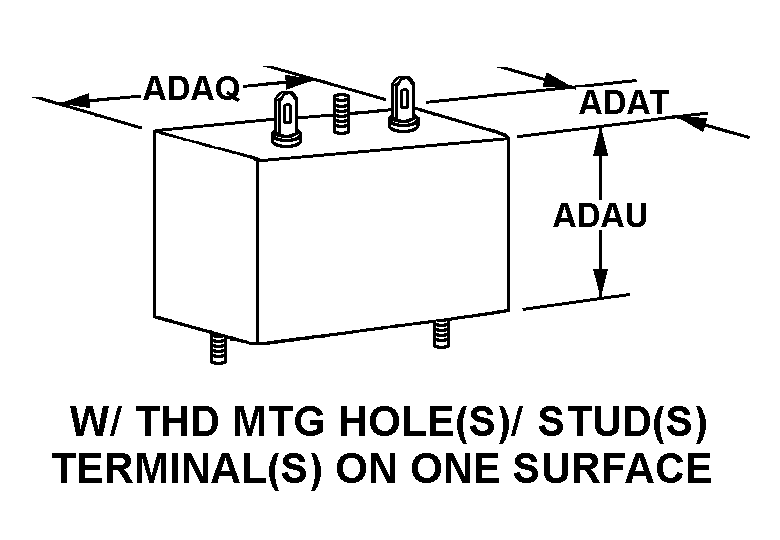

W/THD MTG HOLE(S)/STUD(S) TERMINAL(S) ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-009-6692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 650C1080 | 18633 | E. F. E. LABORATORIES, INC. |
| 650C108 | 18633 | E. F. E. LABORATORIES, INC. |
Technical Data | NSN 5910-00-009-6692
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.008 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 20000.0 DC SINGLE SECTION |
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S) TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 4.000 INCHES NOMINAL |
| BODY WIDTH | 3.000 INCHES NOMINAL |
| BODY HEIGHT | 2.870 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.550 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 3.000 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED MOUNTING HOLES |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 3.250 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.250 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TERMINAL SURFACE TREATMENT | SOLDER |
