Part Details | LEVER SWITCH
5930-00-004-3879 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Alternate Parts: 1993320, 1993320, 1993320, 5930-00-004-3879, 00-004-3879, 5930000043879, 000043879
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 26, 1972 | 00-004-3879 | 00175 ( SWITCH, LEVER ) |
REFERENCE DRAWINGS & PICTURES

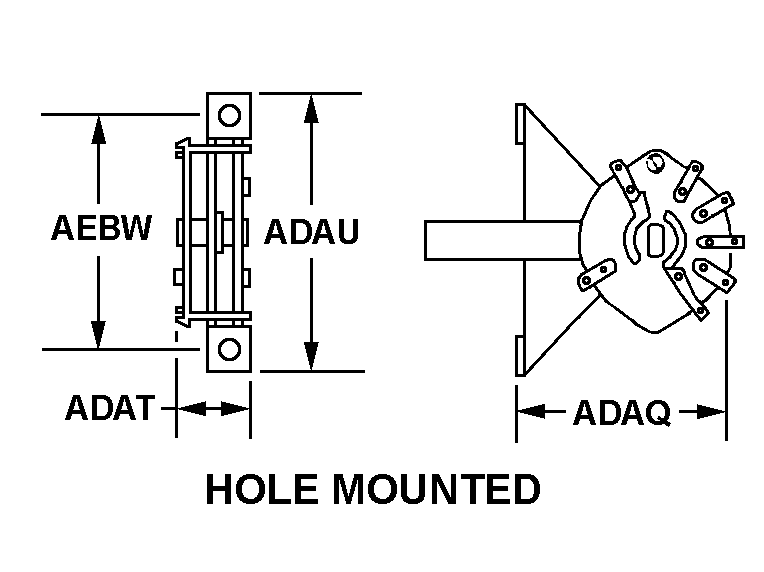

HOLE MOUNTED
Cross Reference | NSN 5930-00-004-3879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1993320 | 77758 | GENERAL MOTORS CORP BALANCEENGINEERING ACTIVITY |
| 1993320 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 1993320 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 5930-00-004-3879
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 12.0 DC |
| BODY STYLE | HOLE MOUNTED |
| BODY WIDTH | 1.270 INCHES NOMINAL |
| BODY HEIGHT | 3.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 QUICK DISCONNECT, MALE |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
