NSN 5930-00-008-0572

Part Details | SENSITIVE SWITCH

5930-00-008-0572 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Alternate Parts: 1RA15, IRA12, 5930-00-008-0572, 00-008-0572, 5930000080572, 000080572

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUL 09, 197200-008-057200399 ( SWITCH, SENSITIVE )
REFERENCE DRAWINGS & PICTURES

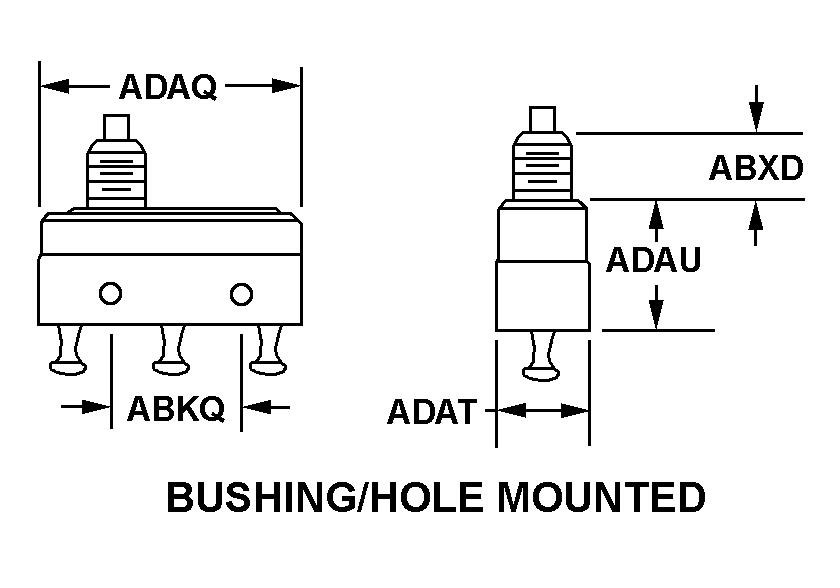

BUSHING/HOLE MOUNTED

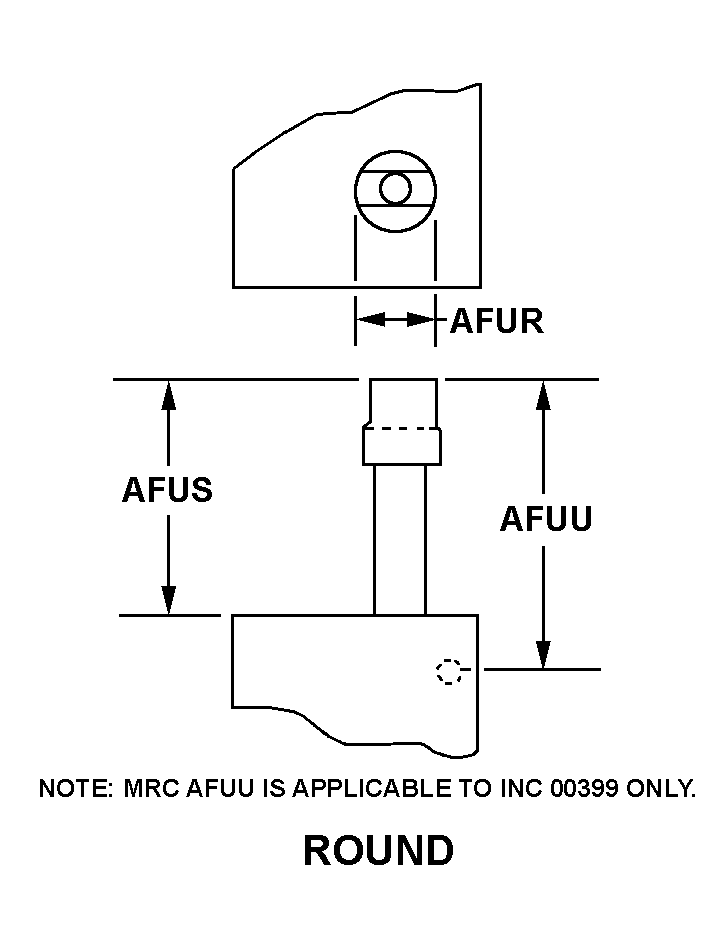

ROUND

Cross Reference | NSN 5930-00-008-0572
Part Number Cage Code Manufacturer
1RA1591929HONEYWELL INTERNATIONAL INC.DBA HONEYWELL
IRA1291929HONEYWELL INTERNATIONAL INC.DBA HONEYWELL
Technical Data | NSN 5930-00-008-0572
Characteristic Specifications
MAXIMUM VOLTAGE RATING IN VOLTS115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGEC4.000 AMPERES RESISTIVE AND C2.500 AMPERES INDUCTIVE AND C2.000 AMPERES LAMP AND B5.000 AMPERES RESISTIVE AND B5.000 AMPERES INDUCTIVE AND B1.500 AMPERES LAMP
BODY STYLE BUSHING/HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH0.375 INCHES NOMINAL
BUSHING LENGTH0.190 INCHES NOMINAL
BODY LENGTH0.800 INCHES NOMINAL
BODY WIDTH0.330 INCHES NOMINAL
BODY HEIGHT0.710 INCHES NOMINAL
ACTUATOR STYLE ROUND
ACTUATOR DIAMETER0.160 INCHES NOMINAL
ACTUATOR HEIGHT0.060 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT1.940 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY3 TURRET
SWITCH ACTUATING FORCE5.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE1.0 OUNCES NOMINAL
ACTUATOR MOVEMENTA0.030 PRETRAVEL INCHES AND A0.005 OVERTRAVEL INCHES AND A0.004 DIFFERENTIAL INCHES
INCLOSURE TYPE FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION DUSTPROOF
UNTHREADED MOUNTING HOLE DIAMETER0.087 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNS
NOMINAL THREAD SIZE0.250 INCHES
THREAD QUANTITY PER INCH40
