Part Details | REED SWITCH
5930-00-008-2026 An item actuated by an external magnetic field and having two or more contacts inclosed in a sealed capsule. Do not use if switch has an actuator, such as a lever, push button, toggle, and the like. See SWITCH (as modified). For items provided with an operating coil, use RELAY (as modified). It includes items in which a contact may be moved into a mercury pool by a magnetic field.
Alternate Parts: Y1010147A, Y1-01-0147A, 5930-00-008-2026, 00-008-2026, 5930000082026, 000082026
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 16, 1972 | 00-008-2026 | 28945 ( SWITCH, REED ) |
REFERENCE DRAWINGS & PICTURES

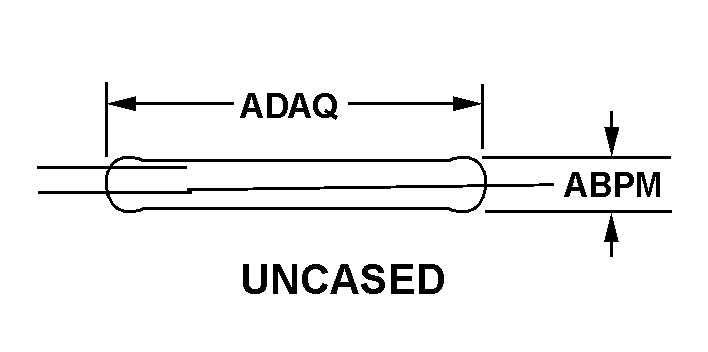

UNCASED
Cross Reference | NSN 5930-00-008-2026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| Y1-01-0147A | 18560 | ACR ELECTRONICS, INC. |
Technical Data | NSN 5930-00-008-2026
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B3.000 AMPERES RESISTIVE |
| BODY STYLE | UNCASED |
| BODY LENGTH | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 0.875 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATING FORCE | 15.0 AMPERE-TURNS NOMINAL |
| SWITCH RELEASE FORCE | 7.5 AMPERE-TURNS NOMINAL |
| MOUNTING METHOD | CLIP |
