Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-006-8794 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: WSS0132P00BN500, 1143240412, 114-324-0412, 5935-00-006-8794, 00-006-8794, 5935000068794, 000068794
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 30, 1972 | 00-006-8794 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

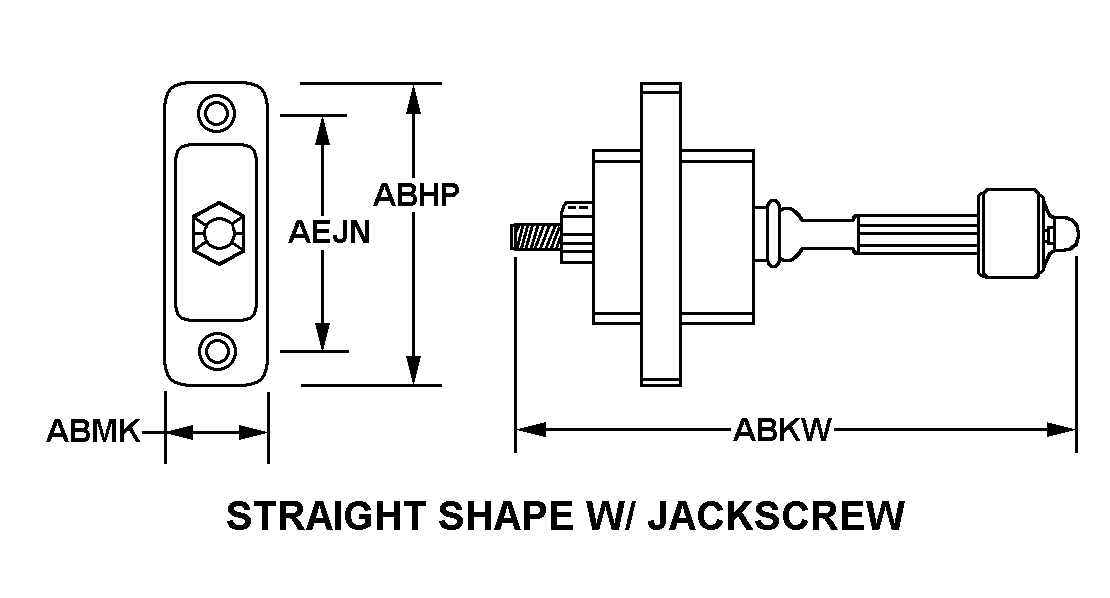

STRAIGHT SHAPE W/JACKSCREW
Cross Reference | NSN 5935-00-006-8794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WSS0132P00BN500 | 73293 | L-3 COMMUNICATIONS ELECTRONTECHNOLOGIES, INC. |
| 114-324-0412 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Technical Data | NSN 5935-00-006-8794
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/JACKSCREW |
| OVERALL LENGTH | 2.790 INCHES NOMINAL |
| OVERALL HEIGHT | 0.834 INCHES NOMINAL |
| OVERALL WIDTH | 0.697 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.470 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| POLARIZATION METHOD | POLARIZATION BOSS |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | POLARIZED AT POSITION BN |
