Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-006-9036 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: GTR2310N, GTR23-10N, S11071028, S1107-10-28, 922463152, 922463-152, 5935-00-006-9036, 00-006-9036, 5935000069036, 000069036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 30, 1972 | 00-006-9036 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

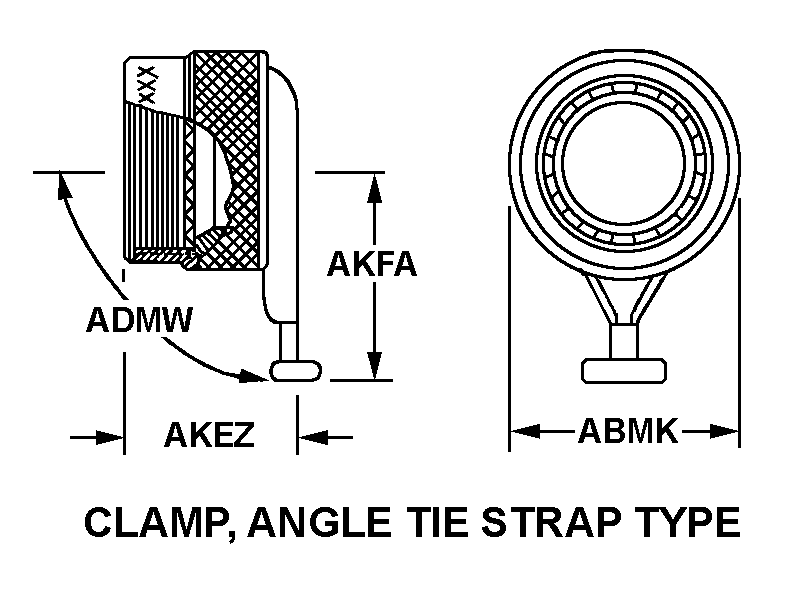

CLAMP, ANGLE TIE STRAP TYPE
Cross Reference | NSN 5935-00-006-9036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GTR23-10N | 06324 | GLENAIR, INC. |
| S1107-10-28 | 07418 | JOSLYN SUNBANK COMPANY, LLC |
| 922463-152 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-00-006-9036
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP, ANGLE TIE STRAP TYPE |
| BODY ANGLE IN DEG | 90.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 3.240 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.000 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.500 INCHES MAXIMUM |
| SIZE DESIGNATION | 10 |
