Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-006-9151 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 3722623050, 372-2623-050, 5935-00-006-9151, 00-006-9151, 5935000069151, 000069151
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 30, 1972 | 00-006-9151 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

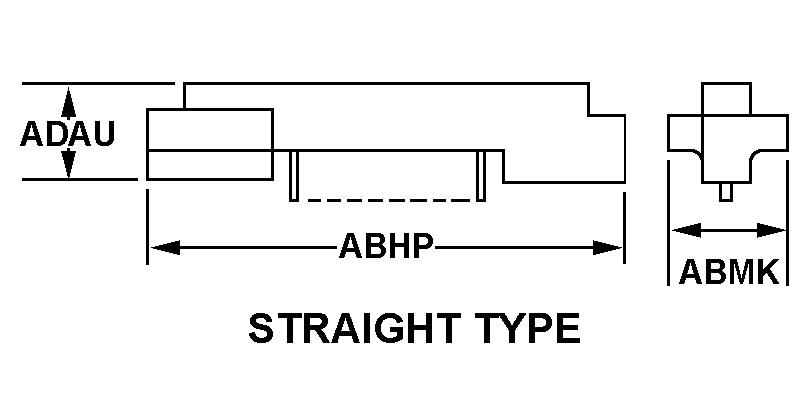

STRAIGHT TYPE
Cross Reference | NSN 5935-00-006-9151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 372-2623-050 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-006-9151
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT TYPE |
| OVERALL LENGTH | 6.140 INCHES NOMINAL |
| OVERALL WIDTH | 0.281 INCHES MINIMUM AND 0.294 INCHES MAXIMUM |
| BODY HEIGHT | 0.315 INCHES MINIMUM AND 0.325 INCHES MAXIMUM |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
| SPECIAL FEATURES | PRINTED CIRCUIT BOARD MTD |
