Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-007-7126 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: GTR01N18, S11051828, S1105-18-28, 9224636, 922463-6, 5935-00-007-7126, 00-007-7126, 5935000077126, 000077126
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1972 | 00-007-7126 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

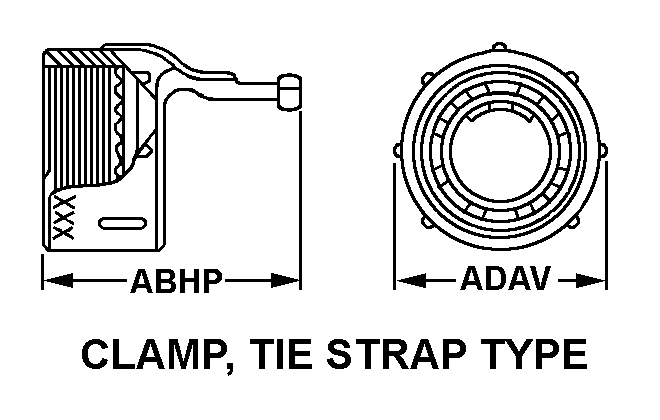

CLAMP, TIE STRAP TYPE
Cross Reference | NSN 5935-00-007-7126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GTR01N18 | 06324 | GLENAIR, INC. |
| S1105-18-28 | 07418 | JOSLYN SUNBANK COMPANY, LLC |
| 922463-6 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-00-007-7126
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP, TIE STRAP TYPE |
| OVERALL LENGTH | 1.310 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.176 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND NICKEL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.062 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.281 INCHES NOMINAL |
| SIZE DESIGNATION | 18 |
