NSN 5935-00-008-0408

Part Details | ELECTRICAL PLUG CONNECTOR

5935-00-008-0408 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: 0008004197, 000-8004-197, GLD0533, 2613, 2613, L530C, L5-30-C, 60710018D, 5935-00-008-0408, 00-008-0408, 5935000080408, 000080408

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUL 14, 197200-008-040801938 ( CONNECTOR, PLUG, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

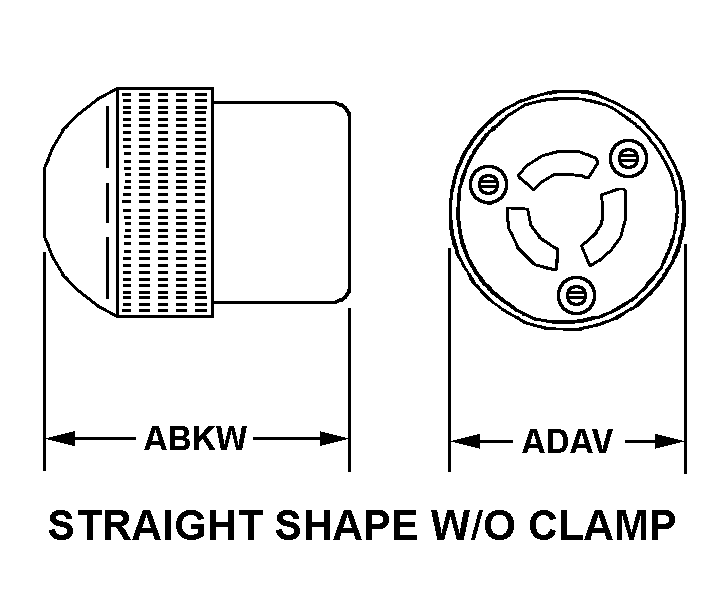

STRAIGHT SHAPE W/O CLAMP

Cross Reference | NSN 5935-00-008-0408
Part Number Cage Code Manufacturer
000-8004-19794756BOEING COMPANY, THEDBA BOEING
GLD053341326GENERAL ELECTRIC COWIRING DEVICE DEPT
261374545HUBBELL INCWIRING DEVICE DIV
261372268HUBBELL INDUSTRIAL CONTROLS, INCDBA FEMCO RADIO CONTROLS
L5-30-C21873SLATER ELECTRIC INC
60710018DK1182THALES UK LIMITED DBA THALES UKLTDTRAINING AND SIMULATION
Technical Data | NSN 5935-00-008-0408
Characteristic Specifications
BODY STYLE STRAIGHT SHAPE W/O CLAMP
OVERALL HEIGHT3.609 INCHES NOMINAL
OVERALL DIAMETER1.937 INCHES NOMINAL
CONNECTOR LOCKING METHOD CONTACT TWISTLOCK
CONNECTOR CABLE STRAIN RELIEF METHOD POTTING TYPE
CABLE ENTRANCE DIAMETER0.385 INCHES MINIMUM AND 0.780 INCHES MAXIMUM
SHELL TYPE SOLID
SHELL MATERIAL PLASTIC POLYAMIDE
POLARIZATION METHOD CONTACT
MATING END QUANTITY1
