Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-008-4672 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 16960010910, 5935-00-008-4672, 00-008-4672, 5935000084672, 000084672
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 19, 1972 | 00-008-4672 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

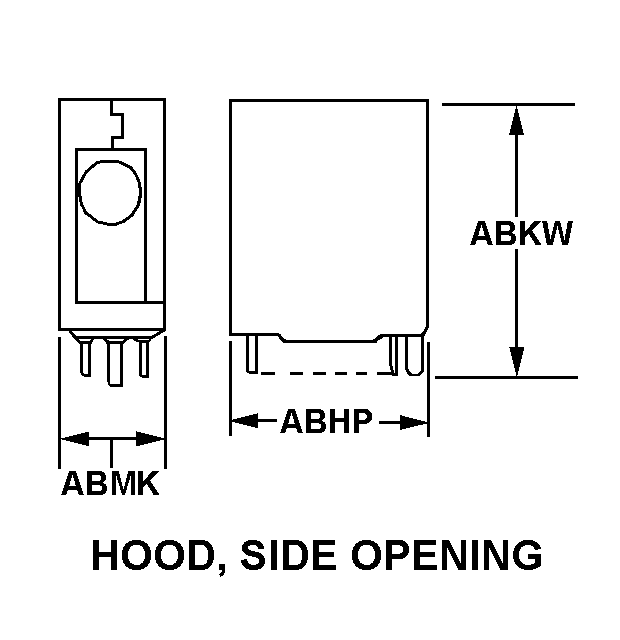

HOOD, SIDE OPENING
Cross Reference | NSN 5935-00-008-4672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16960010910 | 89944 | KOLLSMAN, INC. |
Technical Data | NSN 5935-00-008-4672
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HOOD, SIDE OPENING |
| OVERALL LENGTH | 0.440 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.260 INCHES NOMINAL |
| OVERALL WIDTH | 0.115 INCHES NOMINAL |
