Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-027-9943 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 26450232P363, 26-4502-32P363, 915760126, 9157601-26, 915760126, 9157601-26, 5935-00-027-9943, 00-027-9943, 5935000279943, 000279943
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 09, 1967 | 00-027-9943 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

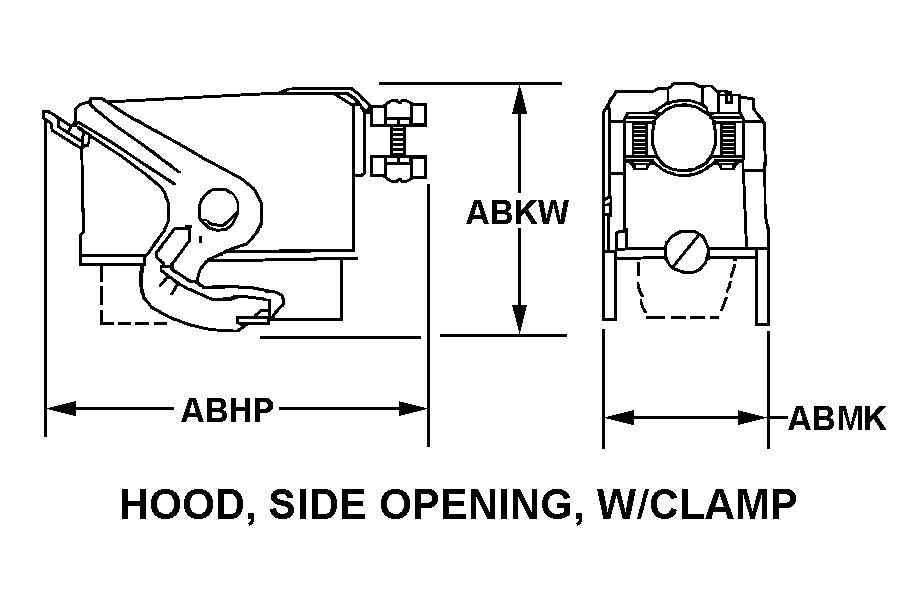

HOOD, SIDE OPENING, W/CLAMP
Cross Reference | NSN 5935-00-027-9943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-4502-32P363 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 9157601-26 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 9157601-26 | 50738 | WIRE-PRO, INCDBA WPI-SALEM DIVISION |
Technical Data | NSN 5935-00-027-9943
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HOOD, SIDE OPENING, W/CLAMP |
| OVERALL LENGTH | 4.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.953 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.625 INCHES MAXIMUM |
| SHELL TYPE | HOOD, SIDE OPENING |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | SHELL |
| SHELL GUIDE TYPE AND LOCATION DESIGNATOR | A PIN AND D PIN AND 4 PIN AND 7 PIN |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.032 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
