Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-031-2665 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: DA62, DA6-2, E1967, DA62, DA6-2, 5935-00-031-2665, 00-031-2665, 5935000312665, 000312665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-031-2665 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

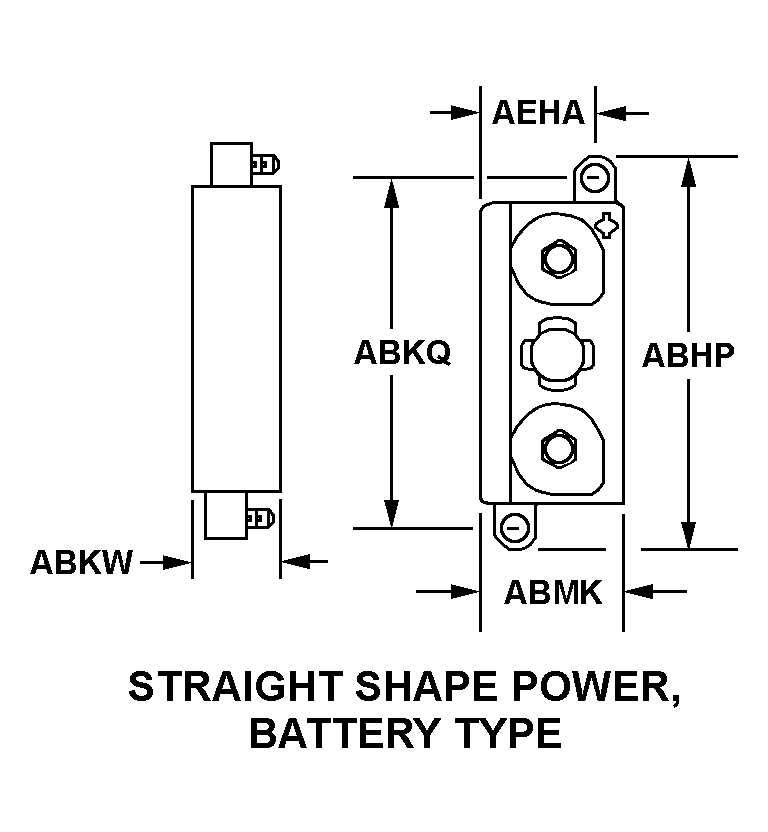

STRAIGHT SHAPE, POWER BATTERY TYPE
Cross Reference | NSN 5935-00-031-2665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DA6-2 | 05593 | ICORE INTERNATIONAL, INC. |
| E1967 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| DA6-2 | 85901 | TYCO ELECTRONICSELCON POWER CONNECTOR PRODUCTS GROUP |
Technical Data | NSN 5935-00-031-2665
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, POWER BATTERY TYPE |
| OVERALL LENGTH | 7.040 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.920 INCHES NOMINAL |
| OVERALL WIDTH | 2.470 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| POLARIZATION METHOD | FIXED CONTACT TO CONTACT |
| MATING END QUANTITY | 1 |
