Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-036-6046 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 8004794G1, 5935-00-036-6046, 00-036-6046, 5935000366046, 000366046
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 01, 1972 | 00-036-6046 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

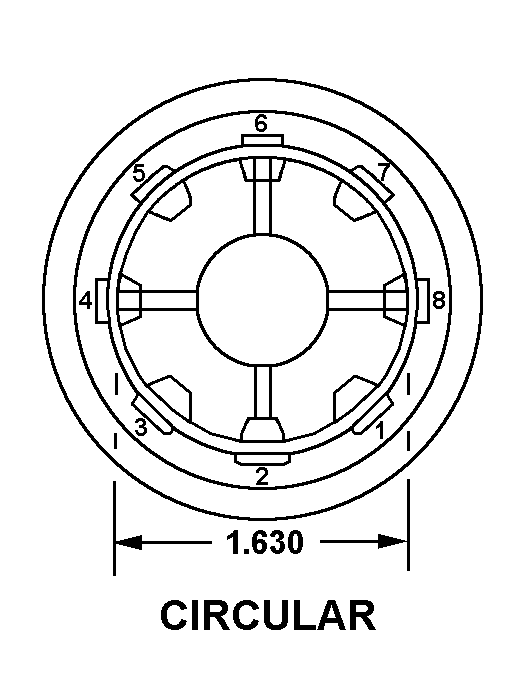

CIRCULAR
Cross Reference | NSN 5935-00-036-6046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8004794G1 | 31550 | HARRIS CORPORATIONDBA NIGHT VISION & COMMUNICATIONS |
Technical Data | NSN 5935-00-036-6046
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| END ITEM IDENTIFICATION | UHF TRANSMITTER AN/GRT-22; VHF TRANSMITTER AN/GRT-21; VARIOUS SHORE ATC |
