Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-044-4001 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 5448554002, 544-8554-002, 5935-00-044-4001, 00-044-4001, 5935000444001, 000444001
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-044-4001 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

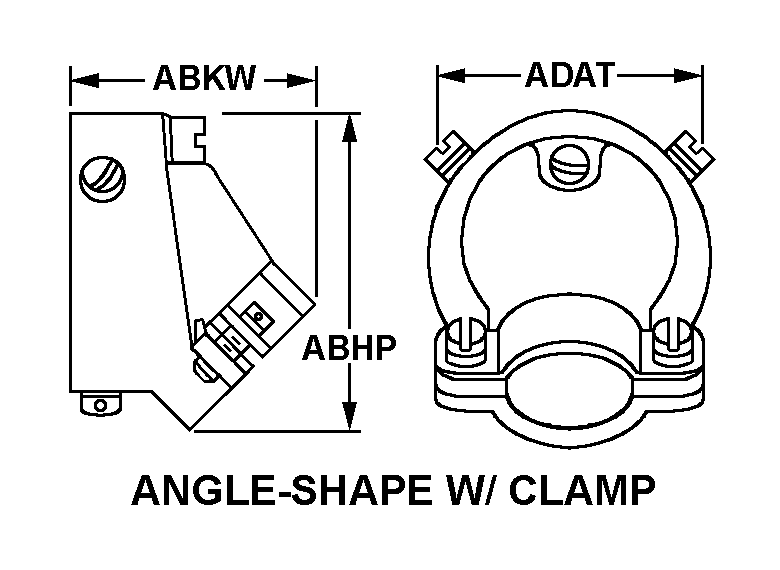

ANGLE SHAPE W/CLAMP
Cross Reference | NSN 5935-00-044-4001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 544-8554-002 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-044-4001
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE SHAPE W/CLAMP |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.281 INCHES NOMINAL |
| BODY WIDTH | 0.476 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | SILVER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.216 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.128 INCHES MAXIMUM |
| PRECIOUS MATERIAL AND LOCATION | SHIELD BODY SILVER |
