5935-00-045-1056 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 6083498, 6083498, 5935-00-045-1056, 00-045-1056, 5935000451056, 000451056
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 17, 1968 | 00-045-1056 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

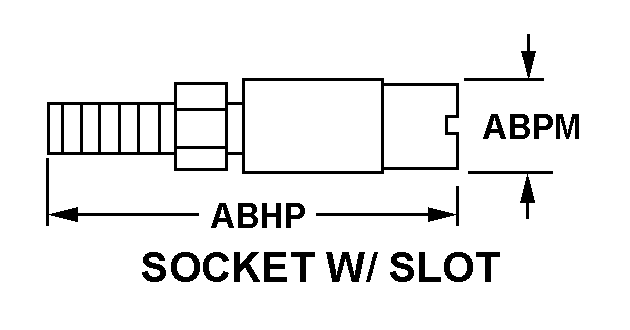

SOCKET W/SLOT
Cross Reference | NSN 5935-00-045-1056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6083498 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 6083498 | 3L606 | MAILLY MFG. CO. INC. |
Technical Data | NSN 5935-00-045-1056
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOCKET W/SLOT |
| OVERALL LENGTH | 0.701 INCHES NOMINAL |
| BODY DIAMETER | 0.179 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.219 INCHES |
