Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-045-7737 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: PT08P106S, PT08P10-6S, 5935-00-045-7737, 00-045-7737, 5935000457737, 000457737
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-045-7737 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

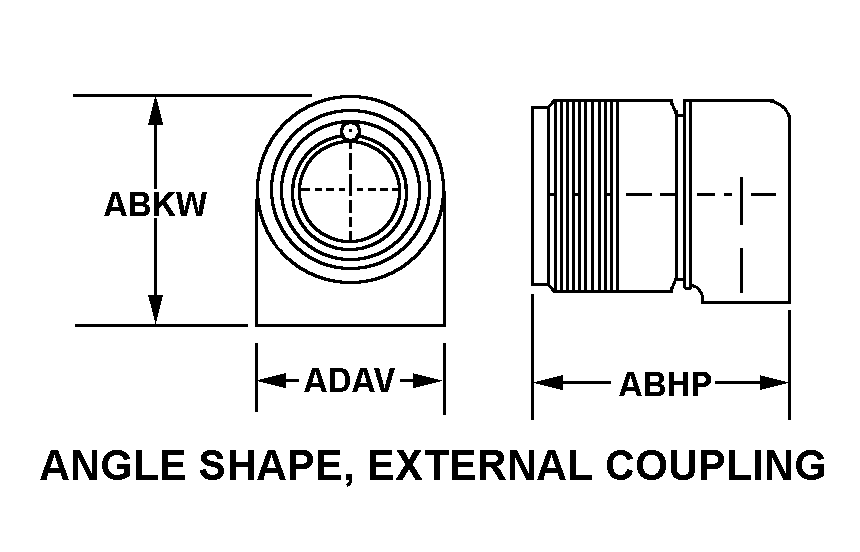

ANGLE SHAPE, EXTERNAL COUPLING
Cross Reference | NSN 5935-00-045-7737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PT08P10-6S | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
Technical Data | NSN 5935-00-045-7737
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.727 INCHES NOMINAL |
| OVERALL HEIGHT | 1.142 INCHES NOMINAL |
| OVERALL DIAMETER | 0.921 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | POTTING TYPE |
| SHELL TYPE | POTTING |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.006 GOLD GRAINS, TROY AND 0.006 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
