Part Details | ELECTRICAL CONNECTOR COVER
5935-00-052-7530 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 101059282, 10105928-2, 1024273224, 10-242732-24, 101059282, 10105928-2, G607372, G60737-2, 101059282, 10105928-2, 5935-00-052-7530, 00-052-7530, 5935000527530, 000527530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-052-7530 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

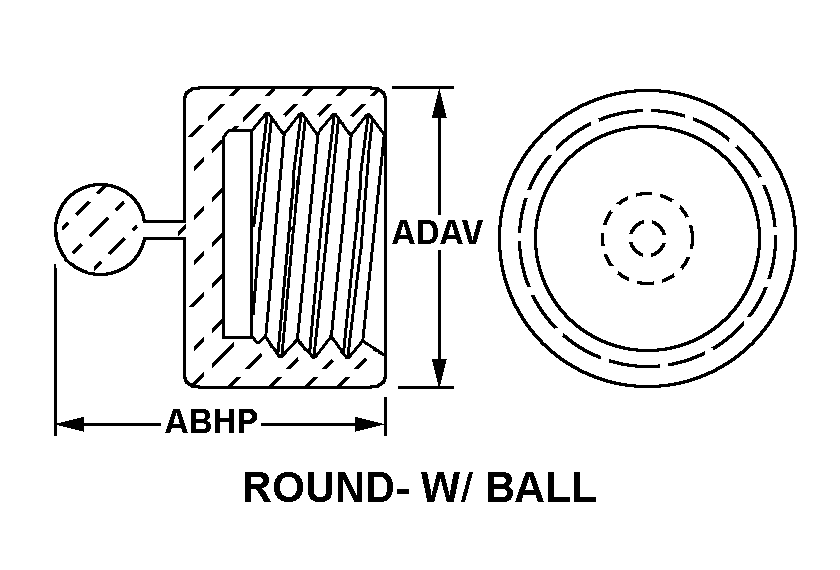

ROUND-W/BALL
Cross Reference | NSN 5935-00-052-7530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10105928-2 | 65534 | ALEK INDUSTRIES, INC. |
| 10-242732-24 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 10105928-2 | 24805 | ESC TECHNOLOGIES INC |
| G60737-2 | 06324 | GLENAIR, INC. |
| 10105928-2 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-052-7530
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND-W/BALL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |
| NOMINAL THREAD SIZE | 1.500 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 10 |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | WIRE ROPE |
| EYE INSIDE DIAMETER | 0.141 INCHES NOMINAL |
