Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET RETAINER
5935-00-084-4196 An item designed to position and/or restrain the movement of one or more plug-in electronic component sockets in their normal mounting position. The retainer is not an integral part of the socket. Excludes ADAPTER, SOCKET, PLUG-IN ELECTRONIC COMPONENTS.
Alternate Parts: 220145800, 220-1458-00, 1241032, 124-103-2, 1241032, 124-103-2, 5935-00-084-4196, 00-084-4196, 5935000844196, 000844196
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-084-4196 | 35543 ( RETAINER, SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

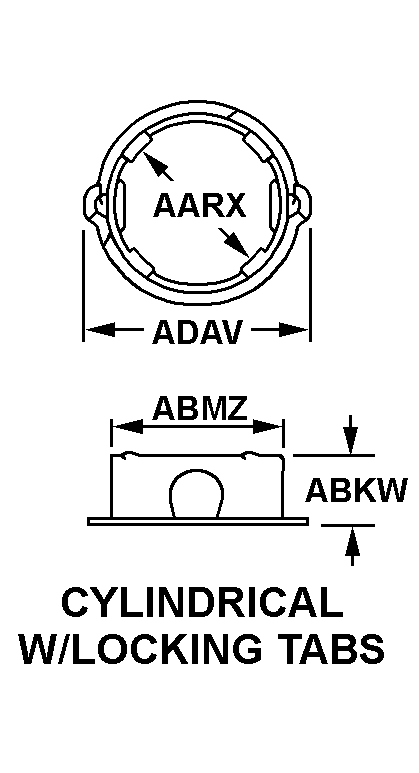

CYLINDRICAL W/LOCKING TABS
Cross Reference | NSN 5935-00-084-4196
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 220-1458-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 124-103-2 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 124-103-2 | 71313 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5935-00-084-4196
| Characteristic | Specifications |
|---|---|
| MATERIAL | METAL |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING TABS |
| INSIDE DIAMETER | 1.438 INCHES NOMINAL |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL DIAMETER | 2.375 INCHES NOMINAL |
