Part Details | ELECTRICAL EQUIPMENT MOUNTING BASE
5975-00-070-1819 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Alternate Parts: 8195301, 819530-1, 215371252, 215-37125-2, 5975-00-070-1819, 00-070-1819, 5975000701819, 000701819
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 22, 1967 | 00-070-1819 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

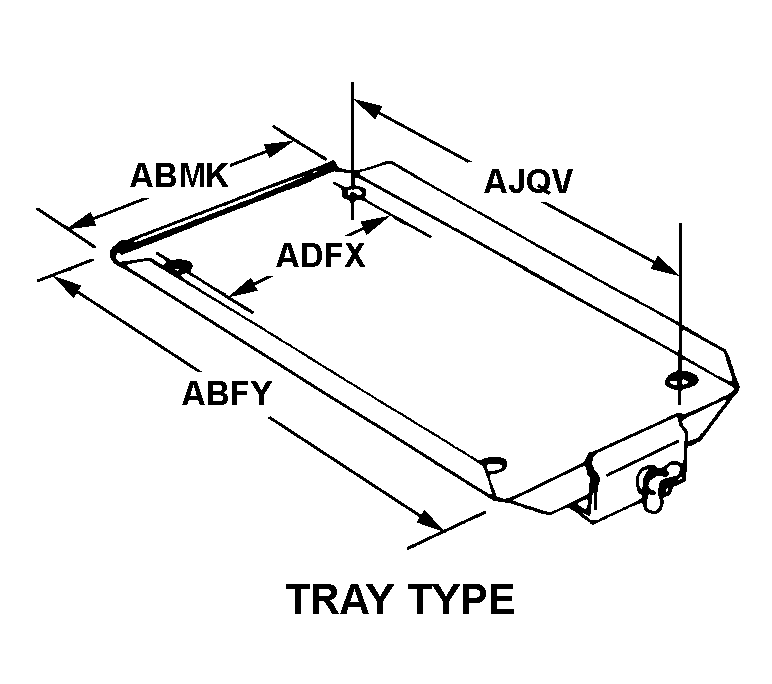

TRAY TYPE
Cross Reference | NSN 5975-00-070-1819
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 819530-1 | 98571 | TELEDYNE CONTROLS, LLC |
| 215-37125-2 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5975-00-070-1819
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRAY TYPE |
| OVERALL DEPTH | 9.969 INCHES NOMINAL |
| OVERALL WIDTH | 8.340 INCHES MINIMUM AND 8.370 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG DEPTH | 7.865 INCHES MINIMUM AND 7.885 INCHES MAXIMUM |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING PROVISION | UNTHREADED HOLE |
| VIBRATION MOUNT TYPE | CUP |
| FSC APPLICATION DATA | AIR DATA COMPUTER,AIRCRAFT |
