Part Details | ELECTRICAL CONDUIT COUPLING
5975-00-074-0892 An item specifically designed and constructed to mechanically connect in a straight line two sections of electrical conduit or like fabrication and of the same size. For three-piece items which may be disassembled without disturbing the rest of the conduit line, see UNION, ELECTRICAL CONDUIT. See also ADAPTER, ELECTRICAL CONDUIT; POTHEAD; and SEALING FITTING, ELECTRICAL CONDUIT.
Alternate Parts: XJ24, 5975-00-074-0892, 00-074-0892, 5975000740892, 000740892
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-074-0892 | 09664 ( COUPLING, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

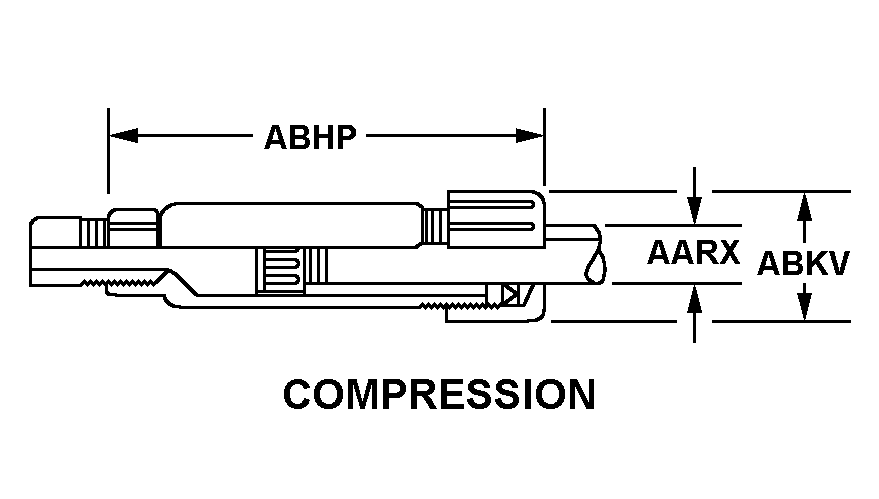

COMPRESSION
Cross Reference | NSN 5975-00-074-0892
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| XJ24 | 15235 | CROUSE-HINDS CO |
Technical Data | NSN 5975-00-074-0892
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COMPRESSION |
| OVERALL LENGTH | 7.938 INCHES NOMINAL |
| MATERIAL | IRON |
| SURFACE TREATMENT | CADMIUM |
| MAXIMUM LINEAR EXPANSION | 4.000 INCHES |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT-NEMA TYPE 4 |
| FURNISHED ITEMS | BUSHING INSULATOR AND PACKING |
