Part Details | ELECTRICAL BOX CONNECTOR
5975-00-078-7088 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: 772, 8100W, 4232, 4232, 5975-00-078-7088, 00-078-7088, 5975000787088, 000787088
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-078-7088 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

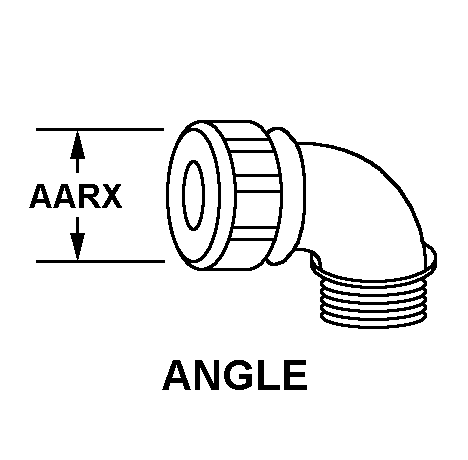

ANGLE
Cross Reference | NSN 5975-00-078-7088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 772 | 72971 | EFCOR INC |
| 8100W | 83879 | EGS ELECTRIC CO LLC |
| 4232 | 56501 | THOMAS & BETTS CORPORATION |
| 4232 | 22421 | THOMAS AND BETTS LTD |
Technical Data | NSN 5975-00-078-7088
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE |
| MATERIAL | IRON MALLEABLE |
| DEFLECTION ANGLE | 90.0 DEGREES |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | RAINTIGHT-NEMA TYPE 3R |
| FURNISHED ITEMS | LOCKNUT |
