Part Details | CONDUIT OUTLET
5975-00-080-2706 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Alternate Parts: FEDWC586TYPE1DESIGN1STYLET, 5975-00-080-2706, 00-080-2706, 5975000802706, 000802706
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-080-2706 | 06945 ( CONDUIT OUTLET ) |
REFERENCE DRAWINGS & PICTURES

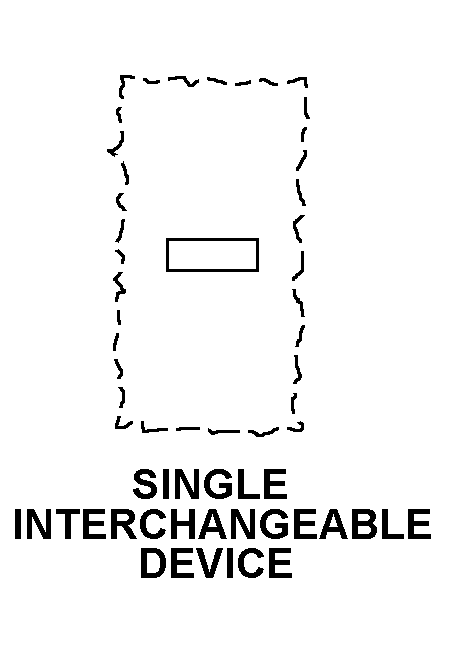

SINGLE INTERCHANGEABLE DEVICE
OBLONG
Cross Reference | NSN 5975-00-080-2706
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FEDWC586TYPE1DESIGN1STYLET | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-080-2706
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A OBLONG |
| COVER OPENING LENGTH | 3.125 INCHES NOMINAL |
| COVER OPENING WIDTH | 0.938 INCHES NOMINAL |
| TRADE DESIGNATION | TA |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER QUANTITY | 1 |
| FUNCTIONAL COVER STYLE | SINGLE INTERCHANGEABLE DEVICE |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 1 DESIGN AND TA STYLE AND I TYPE |
