Part Details | FLEXIBLE METAL CONDUIT
5975-00-080-6878 A conduit constructed of circular flexible metal tubing. It may be shielded with a woven metal wire braid covering, with a packing between the joints, and it may have a rubber and/or synthetic rubber or plastic outer protective covering. It contains no fittings. See also CONDUIT, METAL, RIGID. Excludes conduit like items that are designed for other than electrical applications.
Alternate Parts: EF112, EF1-1-2, EFG15050C, EFG-150-50C, LT15, 47006, EF112, EF1-1-2, EFC15, EF115, 5975-00-080-6878, 00-080-6878, 5975000806878, 000806878
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-080-6878 | 18706 ( CONDUIT, METAL, FLEXIBLE ) |
REFERENCE DRAWINGS & PICTURES

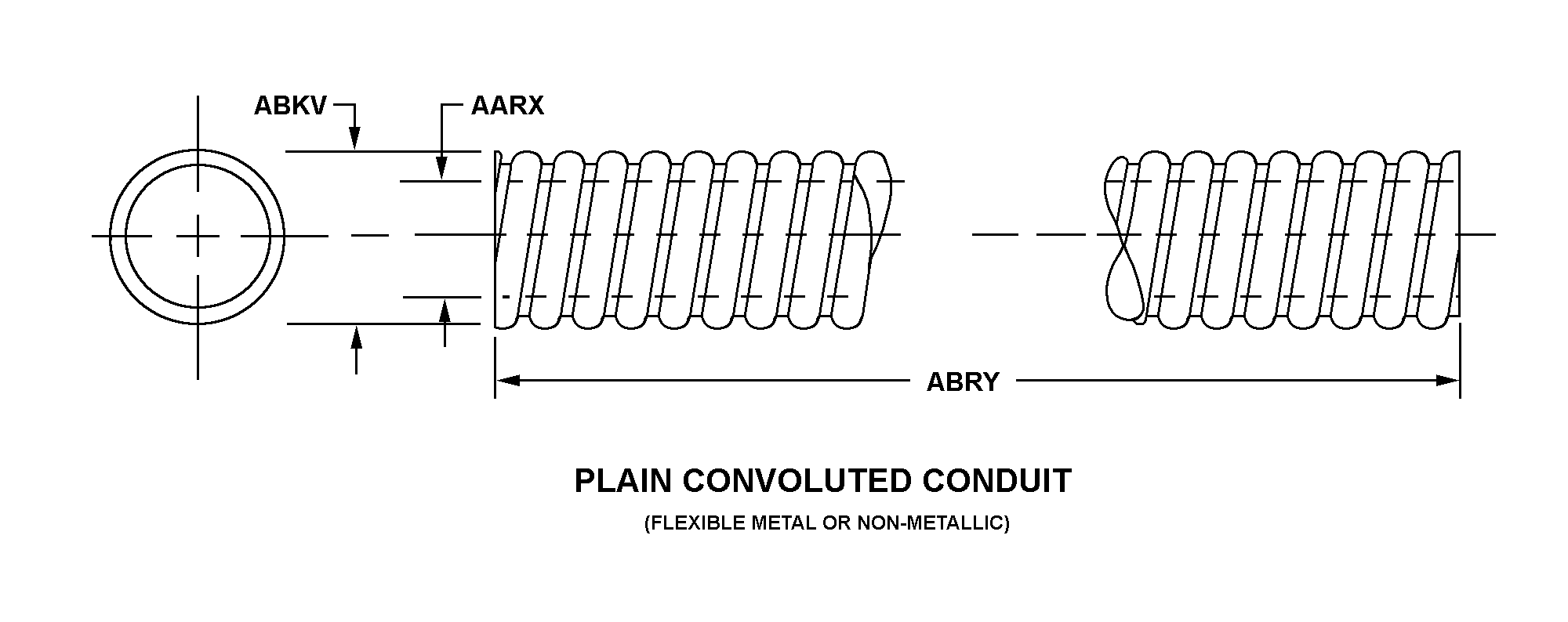

PLAIN CONVOLUTED CONDUIT
Cross Reference | NSN 5975-00-080-6878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EF1-1-2 | 01881 | ARCO METALS CODIV OF ATLANTIC RICHFIELD CO |
| EFG-150-50C | 83879 | EGS ELECTRIC CO LLC |
| LT15 | 09641 | ELECTRI-FLEX CO |
| 47006 | 81774 | GENERAL CABLE CORPORATIONDBA GENERAL CABLE |
| EF1-1-2 | 70510 | HYSPAN PRECISION PRODUCTS, INC.DBA HYSPAN |
| EFC15 | 65444 | KAF-TECH INC |
| EF115 | 60125 | SUNDYNE CORPORATION |
Technical Data | NSN 5975-00-080-6878
| Characteristic | Specifications |
|---|---|
| TRADE SIZE | 1.500 |
| STYLE DESIGNATOR | PLAIN CONVOLUTED CONDUIT |
| INSIDE DIAMETER | 1.588 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.888 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 11.000 INCHES |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FEATURES PROVIDED | OUTER COVERING |
