Part Details | BLANK PANEL
5975-00-086-1423 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: 6682J, 6682-J, PA1108MG, PA1108HG, PWHA1713371, PWHA-17-13371, DL885151, DL88-5151, RI013082, RI-013-082, 9002054 SIZE H, 9002-054 SIZE H, 5975-00-086-1423, 00-086-1423, 5975000861423, 000861423
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1967 | 00-086-1423 | 15195 ( PANEL, BLANK ) |

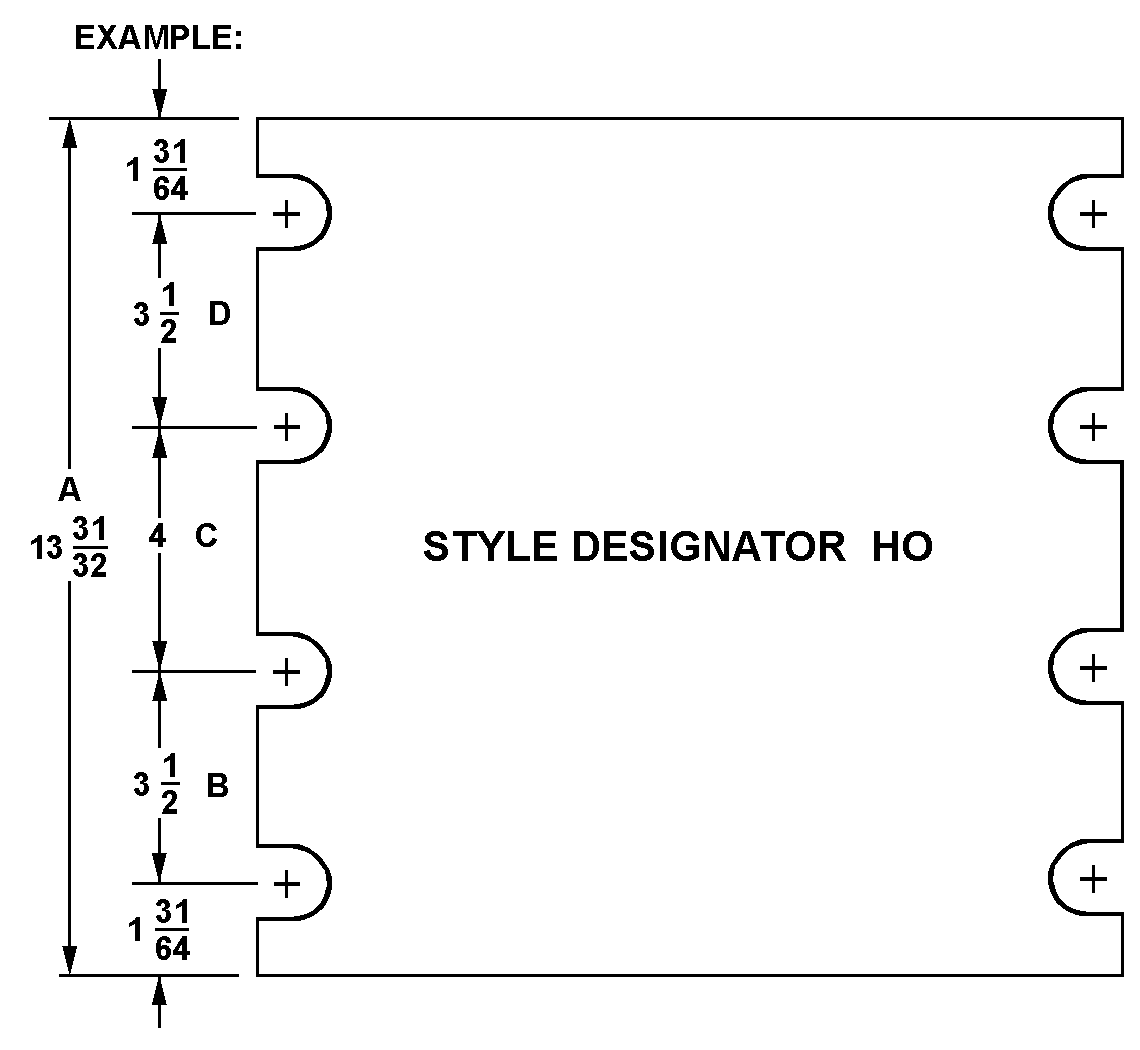

REFERENCE DRAWINGS & PICTURES
OPEN SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-086-1423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6682-J | 74156 | ANGO ELECTRONICS CORPORATIONDBA PAR METAL PRODUCTS |
| PA1108MG | 71218 | BUD INDUSTRIES, INC. |
| PA1108HG | 71218 | BUD INDUSTRIES, INC. |
| PWHA-17-13371 | 00675 | CALIFORNIA CHASSIS, INC. |
| DL88-5151 | 56772 | DA LO INDUSTRIES INCDIV DA LO INDUSTRIES DIVISION OF |
| RI-013-082 | 63564 | RHYTHM INDUSTRIES INC |
| 9002-054 SIZE H | 62989 | XY RESOURCES INCDBA TELECOM INSTALLATION DIV |
Technical Data | NSN 5975-00-086-1423
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 13.969 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 3003 |
| SURFACE TREATMENT | LACQUER |
| COLOR | GRAY, HAMMERTONE |
| STANDARD MOUNTING PATTERN DESIGNATOR | OPEN SLOT |
| SPECIAL FEATURES | TEMPER H14 |
